Question: Shown in the figure below is a point charge surrounded by two conducting spherical shells (Shell 1 and Shell 2). You are to fill in

 Shown in the figure below is a point charge surrounded by

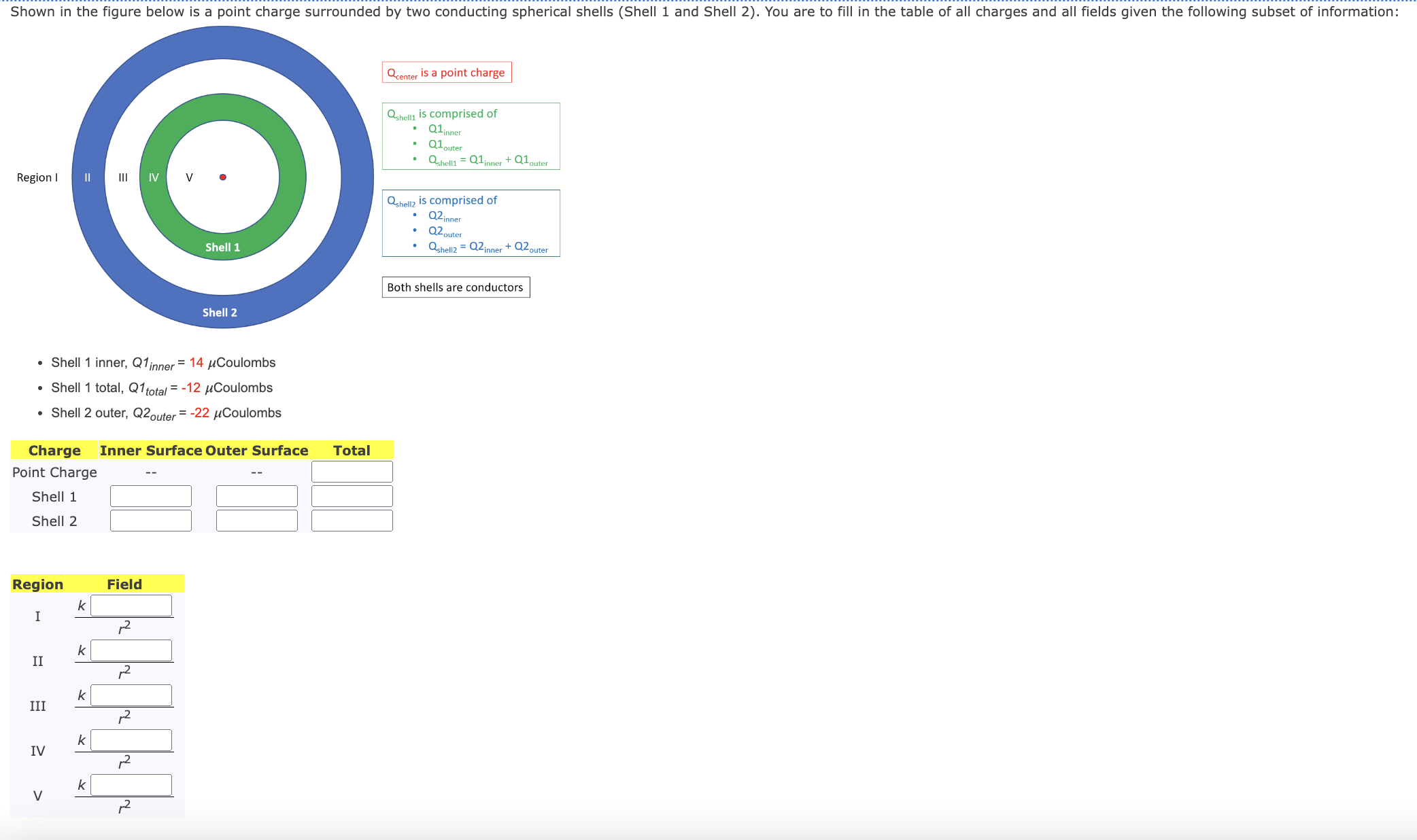

Shown in the figure below is a point charge surrounded by two conducting spherical shells (Shell 1 and Shell 2). You are to fill in the table of all charges and all fields given the following subset of information: Ocenter is a point charge Oshell is comprised of . Q1inner Q1puter Qshell = Q1inner + Q1outer Region I IV Qshelly is comprised of . Q2inne Q2outer Shell 1 Qshell? = Q2inner + Q2outer Both shells are conductors Shell 2 . Shell 1 inner, Q1 inner = 14 uCoulombs . Shell 1 total, Q1 total = -12 Coulombs . Shell 2 outer, Q2outer = -22 uCoulombs Charge Inner Surface Outer Surface Total Point Charge Shell 1 Shell 2 Region Field k K II K III K TV 12 k V
