Question: Shown in the figure below is a point charge surrounded by two conducting spherical shells (Shell 1 and Shell 2). You are to fill in

 Shown in the figure below is a point charge surrounded by

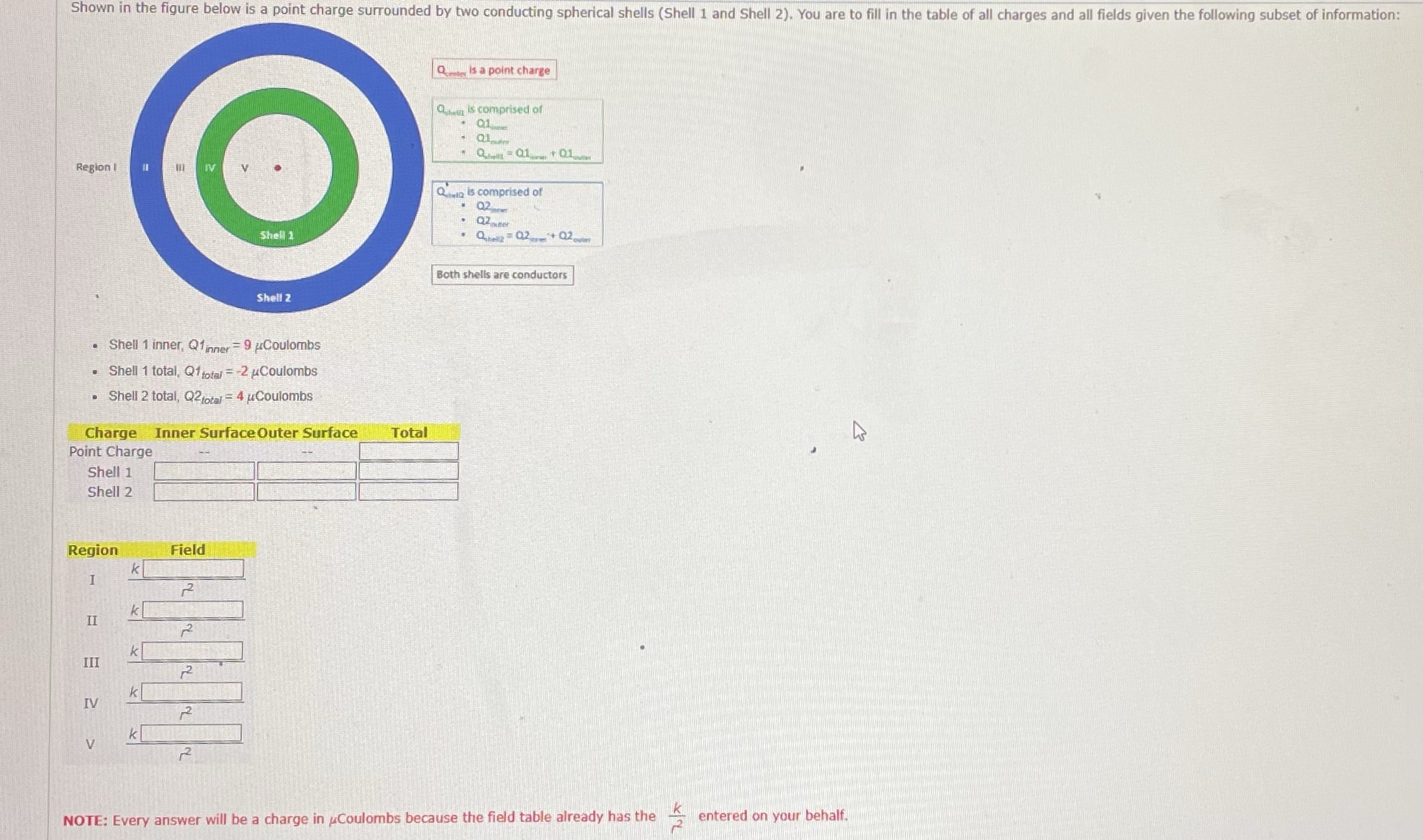

Shown in the figure below is a point charge surrounded by two conducting spherical shells (Shell 1 and Shell 2). You are to fill in the table of all charges and all fields given the following subset of information: Quit is a point charge Quin is comprised of Q -01 01 Region I Quin is comprised of Q2 Shell 1 Both shells are conductors Shell 2 Shell 1 inner, Q1 inner = 9 #Coulombs . Shell 1 total, Q1 total = 2 uCoulombs . Shell 2 total, Q2total = 4 u Coulombs Charge Inner Surface Outer Surface Total Point Charge Shell 1 Shell 2 Region Field K I 12 II K III 2 K 12 NOTE: Every answer will be a charge in Coulombs because the field table already has the entered on your behalf

Step by Step Solution

There are 3 Steps involved in it
