Question: Shown is part of a temperature control program with math instructions. Start and PB _ Set are normally open switch and push button respectively. The

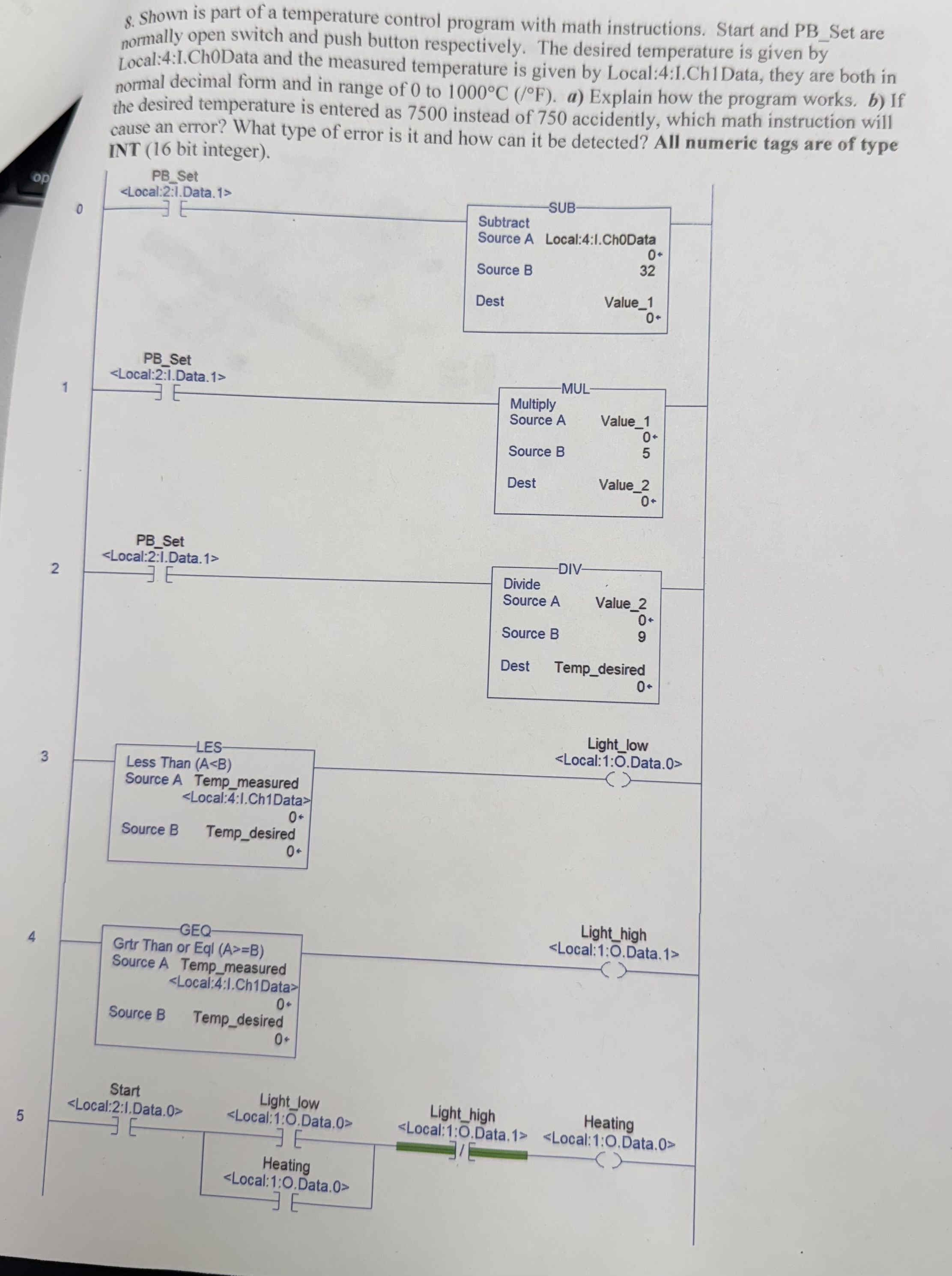

Shown is part of a temperature control program with math instructions. Start and PB_Set are normally open switch and push button respectively. The desired temperature is given by Local:4:I.Ch0Data and the measured temperature is given by Local:4:I.Ch1Data, they are both in normal decimal form and in range of 0 to 1000C(??F), a) Explain how the program works, b) If the desired temperature is entered as 7500 instead of 750 accidently, which math instruction will cause an error? What type of error is it and how can it be detected? All numeric tags are of type INT (16 bit integer).
op
0
PB_Set
Local:2:I.Da
=0
??
Subtract
Source A Local:4:I.ChOData
Source B
0
PB_Set
Local:2:1.Data.1
1
PB_Set
Local:2:I.Data.1
2
3
4
Light_high
Light_low
\table[[Divide,],[Source A,Value_2],[Source B,0+
