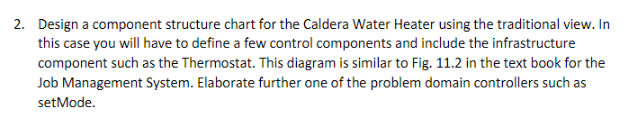

SOFE 2720 Class Activity - Component Level Design Learning Objective This activity emphasizes the design of software based on components. Exercises After carefully now studying more component-level design it is worth designing the Caldera software system using components. The textbook presents 2 types of component design views: 1) Object-oriented view and 2) Traditional view. An elaborated design for the Caldera software product is shown below. Design a component structure chart for the Caldera Water Heater using the traditional view. In this case you will have to define a few control components and include the infrastructure component such as the Thermostat. This diagram is similar to Fig. 11.2 in the text book for the Job Management System. Elaborate further one of the problem domain controllers such as setMode
