Question: software engineering Given below is a state machine for a Garage Door opener control class. Apply the extended State Design Pattern to implement this state

software engineering

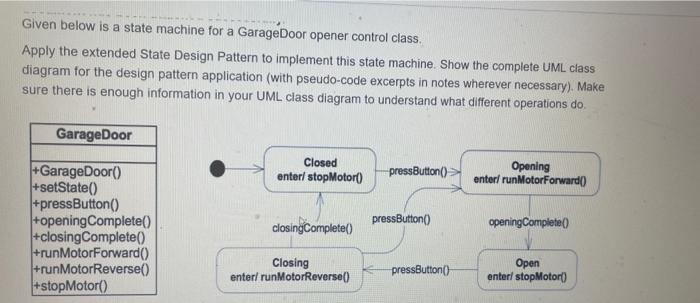

Given below is a state machine for a Garage Door opener control class. Apply the extended State Design Pattern to implement this state machine. Show the complete UML class diagram for the design pattern application (with pseudo-code excerpts in notes wherever necessary). Make sure there is enough information in your UML class diagram to understand what different operations do Garage Door Closed enter/ stopMotor) pressButton() Opening entert run MotorForward +Garage Door() +setState) +pressButton() +opening Complete() +closing Complete() +run MotorForward() +run MotorReverse() + stopMotor() closing Complete() pressButton() opening Complete Closing enterrun MotorReverse() pressButton() Open enteri stopMotor)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
