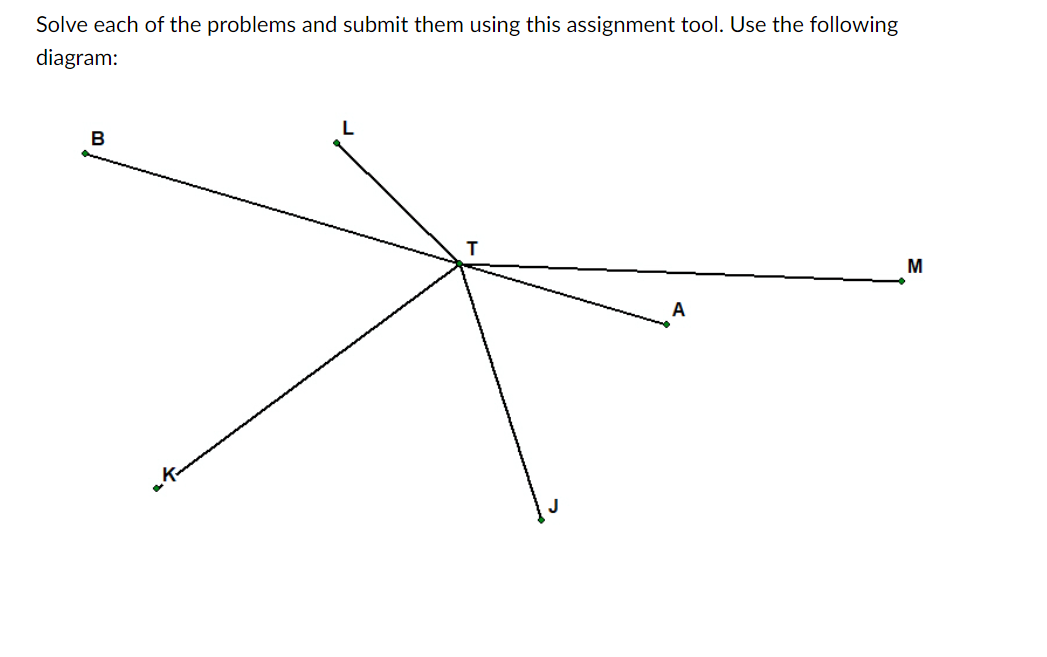

Solve each of the problems and submit them using this assignment tool. Use the following diagram: Problem $1$

Given the coordinates of the points below:

Point $A$

$x=539,097\mathrm{.}545$

$Y=167,474\mathrm{.}503$

Point B

$x=539,043\mathrm{.}576$

$Y=167,490\mathrm{.}324$

What is the azimuth of the line from $A$ to $B?$ How long is the line from $A$ to $B?$

Problem $2$

If your total station is set up at a point $20$ feet from $A,$ what is the coordinate of the total

station point $($call it Point T$)?$

Problem $3$

What is the coordinate of point J $,$ located at a horizontal angle of $56$ and a horizontal

distance of ${25}^{\text{'}}$ from the total station?

Problem $4$

What is the coordinate of point K $,$ located at a horizontal angle of $127$ and a horizontal

distance of ${35}^{\text{'}}$ from the total station? Problem $5$

What is the coordinate of point L $,$ located at a horizontal angle of $208$ and a horizontal

distance of $16\text{'}$ from the total station?

Problem $6$

What is the coordinate of point M $,$ located at a horizontal angle of $346$ and a horizontal

distance of $41\text{'}$ from the total station?

Problem $7$

Given the following. The instrument is set up over A and now a sight is taken to H $,$ located

here:

$x=538,317\mathrm{.}269$

$Y=167,873\mathrm{.}258$

What is the azimuth and distance from A to H $?$ Problem $8$

Find the area of a parcel given these coordinates:

Coordinate Table for Problem $8$
