Question: Solve it please Q3: (a) Construct State Table, circuit diagram and state equations for the following state diagram. 0/0 0/0 001 0/0 0/0 0/0 1/0

Solve it please Solve it please Q3: (a) Construct State Table, circuit diagram and state

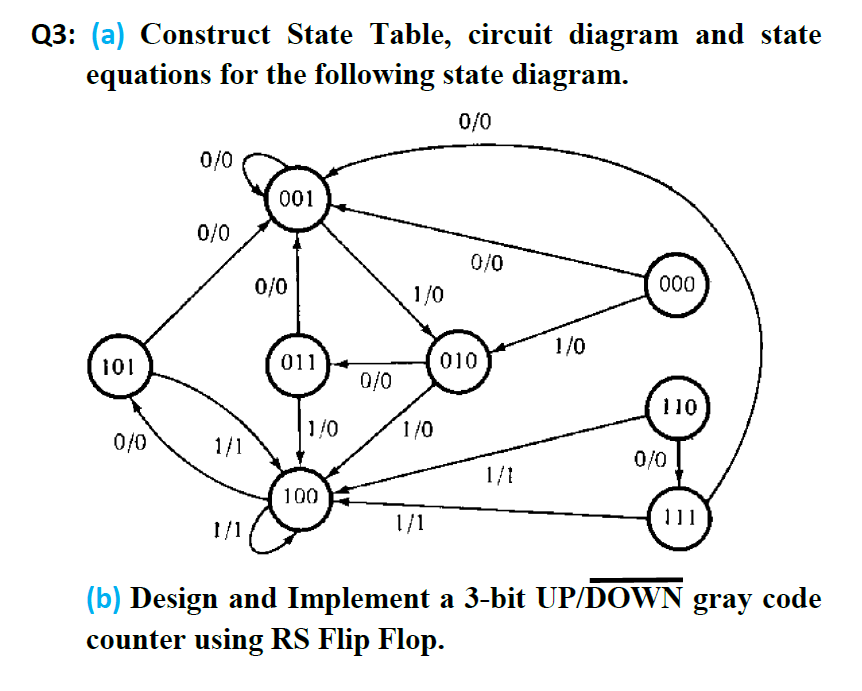

Q3: (a) Construct State Table, circuit diagram and state equations for the following state diagram. 0/0 0/0 001 0/0 0/0 0/0 1/0 000 1/0 101 011 010 0/0 110 1/0 1/0 0/0 1/1 0/0 1/1 100 111 1/1 1/1 (b) Design and Implement a 3-bit UP/DOWN gray code counter using RS Flip Flop

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

urgnetly solution required Q3: (a) Construct State Table, circuit diagram and state equations for the following state diagram. 0/0 0/0 001 0/0 0/0 0/0 1/0 000 1/0 101 011 010 0/0 110 1/0 0/0 1/0 0/0...
