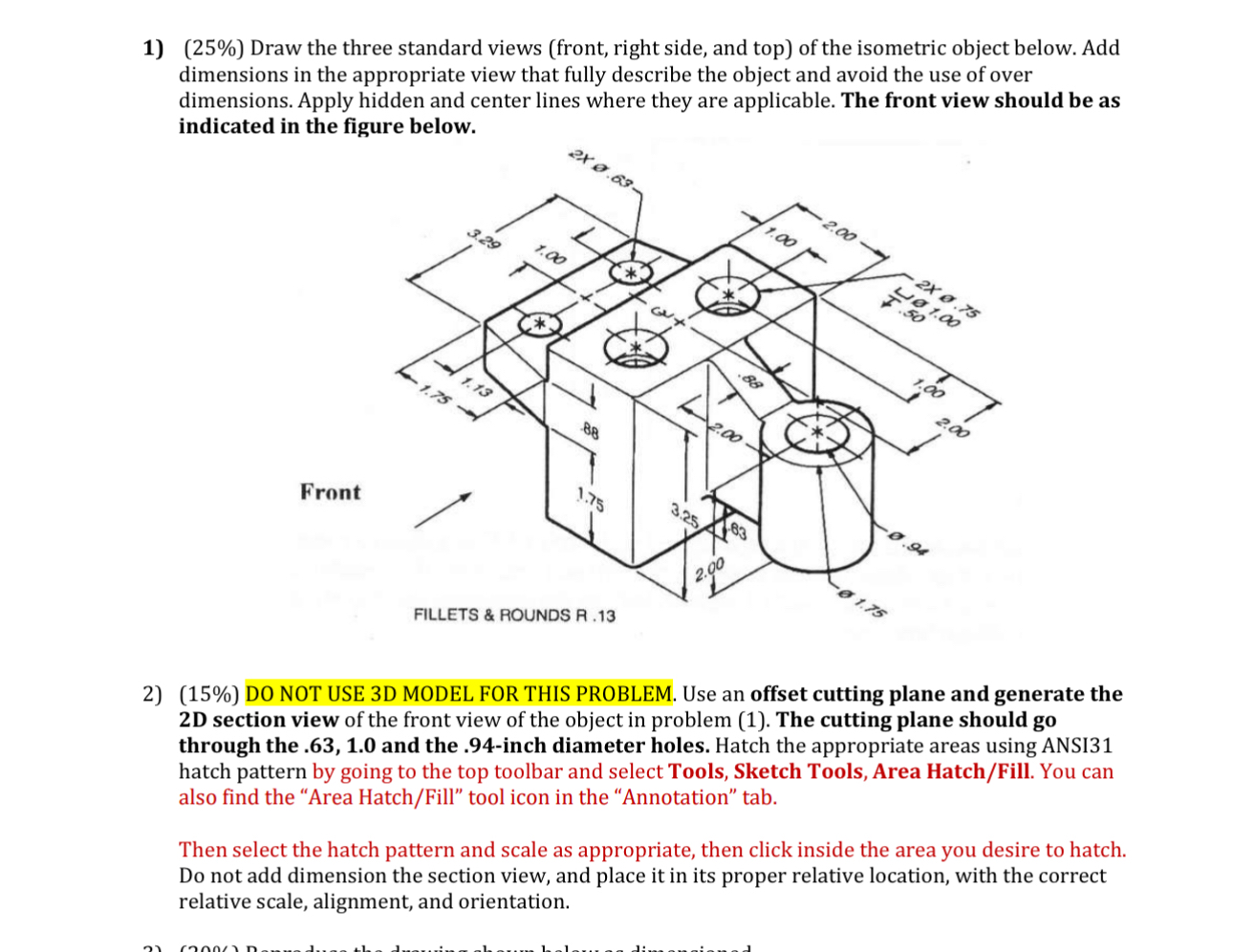

SOLVE NUMBER $2,$ WILL UPVOTE$)\%)$ Draw the three standard views $($front$,$ right side, and top$)$ of the isometric object below. Add dimensions in the appropriate view that fully describe the object and avoid the use of over dimensions. Apply hidden and center lines where they are applicable. The front view should be as indicated in the figure below.

$F_1$

$(15\%)$ DO NOT USE $3$D MODEL FOR THIS PROBLEM. Use an offset cutting plane and generate the $2$D section view of the front view of the object in problem $(1).$ The cutting plane should go through the $\mathrm{.}63,1\mathrm{.}0$ and the. $94-$inch diameter holes. Hatch the appropriate areas using ANSI$31$ hatch pattern by going to the top toolbar and select Tools, Sketch Tools, Area Hatch$/$Fill$.$ You can also find the "Area Hatch$/$Fill$"$ tool icon in the "Annotation" tab.

Then select the hatch pattern and scale as appropriate, then click inside the area you desire to hatch. Do not add dimension the section view, and place it in its proper relative location, with the correct relative scale, alignment, and orientation.
