Question: Solve problem using Mohr's circle 9 - 5 5 . Determine the equivalent state of stress which represents ( a ) the principal stresses and

Solve problem using Mohr's circle

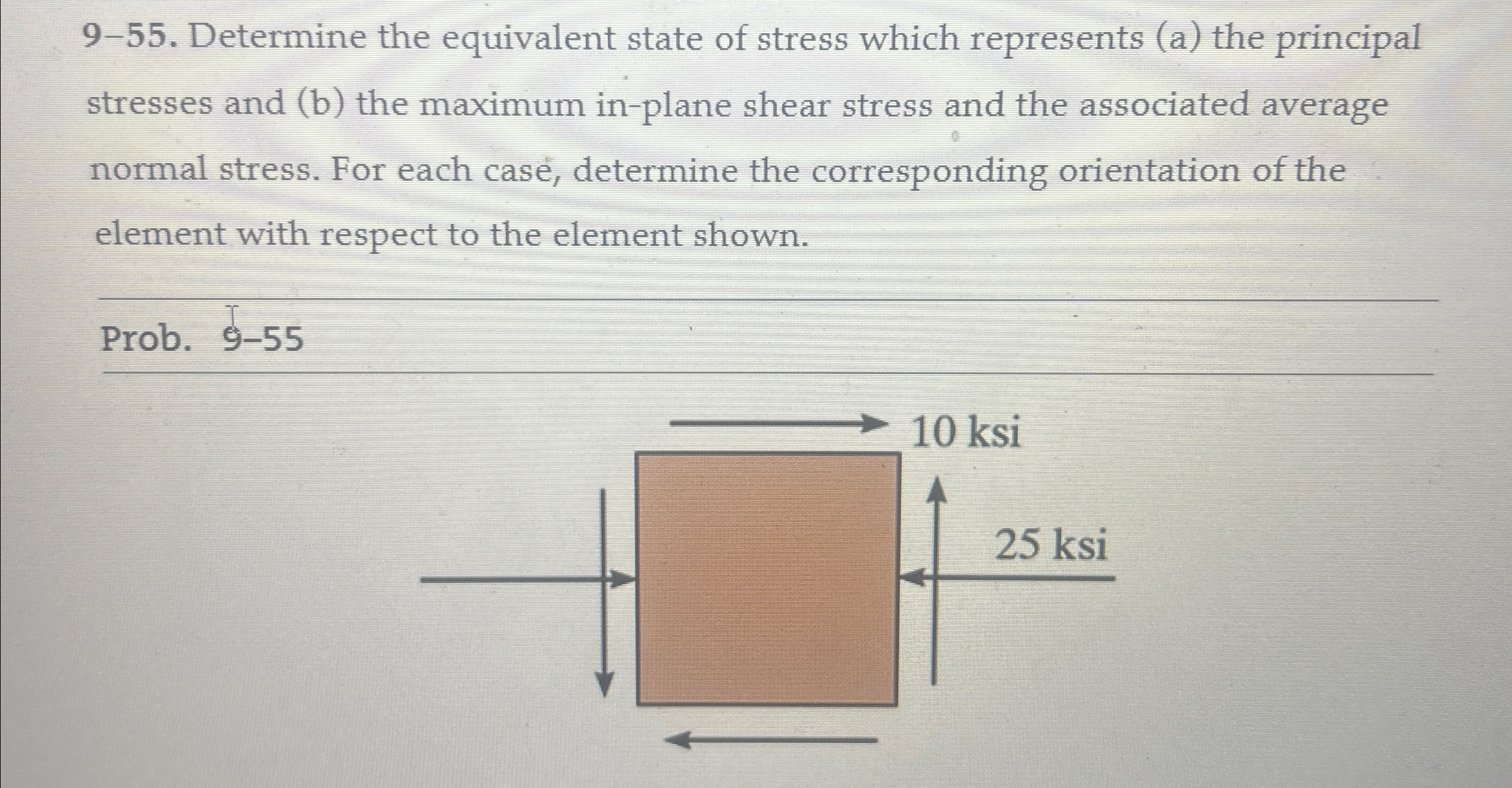

9-55. Determine the equivalent state of stress which represents (a) the principal stresses and (b) the maximum in-plane shear stress and the associated average normal stress. For each cas, determine the corresponding orientation of the element with respect to the element shown.
Prob. 9-55
Solve problem using Mohr's circle 9 - 5 5 .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
