Question: Spring AB is supported by a frictionless roller at B so that it is always vertical. NOTE: This is a multi-part question. Once an answer

Spring AB is supported by a frictionless roller

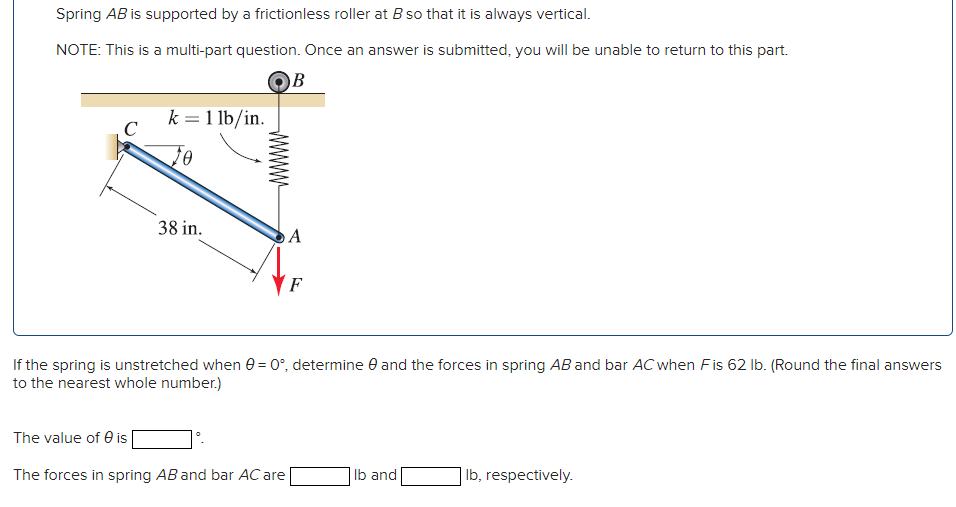

Spring AB is supported by a frictionless roller at B so that it is always vertical. NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. If the spring is unstretched when =0, determine and the forces in spring AB and bar AC when F is 62lb. (Round the final answers to the nearest whole number.) The value of is The forces in spring AB and bar AC are Ib and lb, respectively

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

Could someone help me answer the full 4 questions? 1. Background: please start by building an n=10-period binomial model for the short-rate, ri,j. The lattice parameters are: r0,0=5%,u=1.1,d=0.9 and...

Spring AB is supported by a frictionless roller at B so that it is always vertical. If the spring is unstretched when 0 = 0, determine 0 and the forces in spring AB and bar AC when F has the value...
