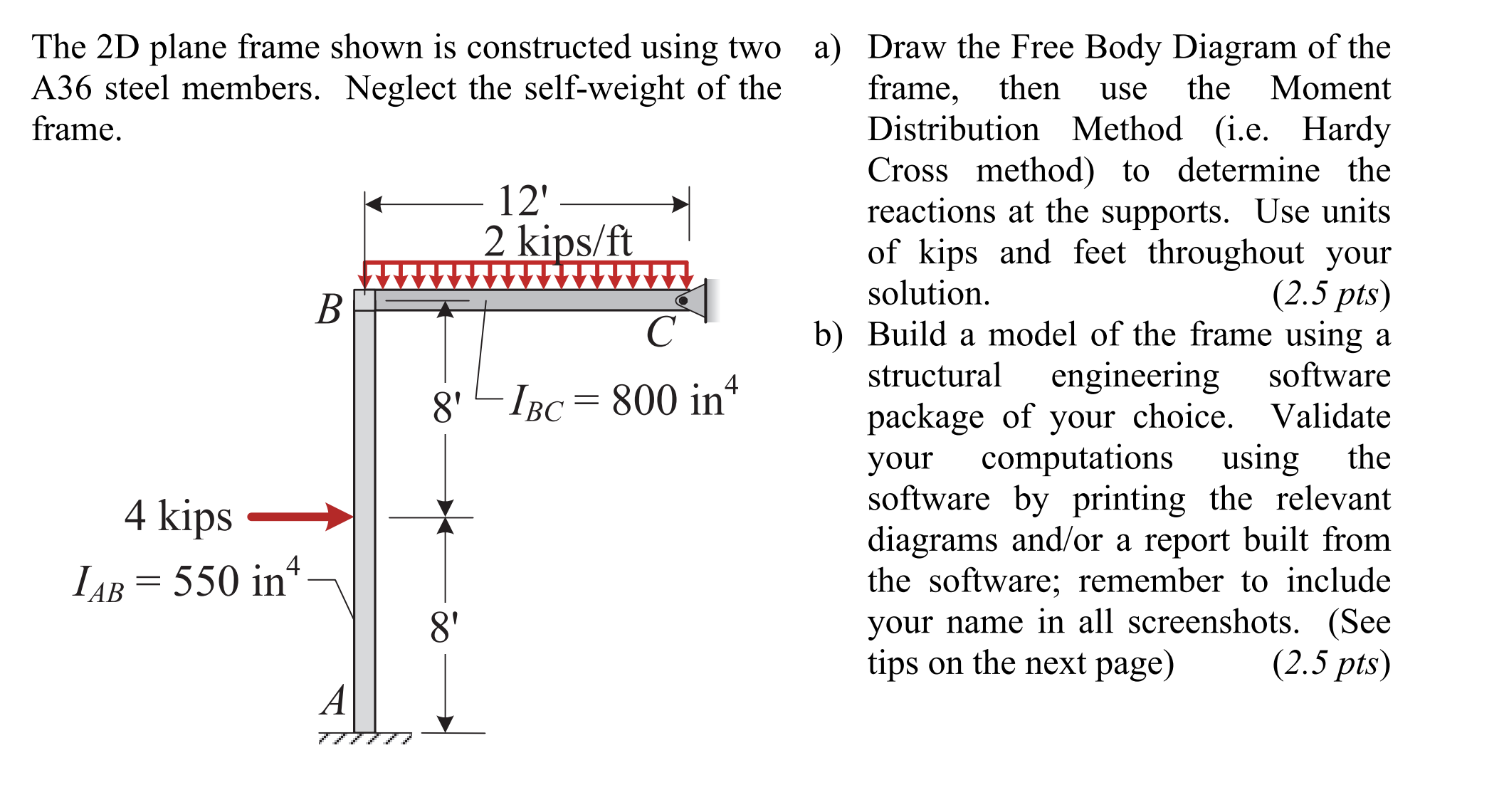

structural analysis soultionThe $2$D plane frame shown is constructed using two

A$36$ steel members. Neglect the self$-$weight of the

frame.

a$)$ Draw the Free Body Diagram of the

frame, then use the Moment

Distribution Method $($i$.$e$.$ Hardy

Cross method$)$ to determine the

reactions at the supports. Use units

of kips and feet throughout your

solution.

$(2\mathrm{.}5pts)$

b$)$ Build a model of the frame using a

structural engineering software

package of your choice. Validate

your computations using the

software by printing the relevant

diagrams and$/$or a report built from

the software; remember to include

your name in all screenshots. $($See

tips on the next page$)$

$(2\mathrm{.}5pts)$
