Supplied Header file:

#ifndef C2A5E2_TYPE_DRIVER_H

#define C2A5E2_TYPE_DRIVER_H

#define ELEMENTS 9

// Type to use for dynamic array elements...

typedef signed char Type[ELEMENTS];

#undef ELEMENTS

#endif

Supplied Driver File:

#define INSTRUCTOR_FILE

#ifdef INSTRUCTOR_FILE

#include

#include

#include

#include "C2A5E2_Type-Driver.h"

#define DIM_MAX 27

#define DIM_STEP 1

#define ROW_COUNT_START 1

#define COL_COUNT_START DIM_MAX

Type **Create2D(size_t rows, size_t cols);

void Free2D(void *p);

static int Test2D(Type **ppObj, int dim0, int dim1);

int main(void)

{

Type **ppObj;

int rows, cols, gotFailure = 0;

for (

rows = ROW_COUNT_START, cols = COL_COUNT_START;

rows 0;

rows += DIM_STEP, cols -= DIM_STEP

)

{

int failed;

// Create a 2D array of "Objects" dynamically.

ppObj = Create2D((size_t)rows, (size_t)cols);

// Test it and print the results.

failed = Test2D(ppObj, rows, cols);

// Free the array.

Free2D((void *)ppObj);

if (failed)

{

gotFailure = 1;

fprintf(stderr, "Create2D(%d, %d) failed ", rows, cols);

}

else

printf("Create2D(%d, %d) succeeded ", rows, cols);

}

if (gotFailure)

return EXIT_FAILURE;

return EXIT_SUCCESS;

}

int Test2D(Type **ppObj, int dim0, int dim1)

{

signed char testValue;

int row, col, ix;

int error;

Type *pObj;

Type item;

// Fill up the array with known values using 2D syntax.

testValue = SCHAR_MIN;

for (row = 0; row

{

for (col = 0; col

{

// For this to work Type must be a 1D array type.

for (ix = 0; ix

{

// printf("%4d ", testValue);

ppObj[row][col][ix] = testValue;

if (testValue == SCHAR_MAX)

testValue = SCHAR_MIN;

else

++testValue;

}

}

}

// printf(" ");

// Verify the stored values using a compact pointer.

error = 0;

testValue = SCHAR_MIN;

for (pObj = (Type *)(ppObj + dim0);

pObj

{

// For this to work Type must be a 1D array type.

for (ix = 0; ix

{

// printf("%4d ", (*pObj)[ix]);

if ((*pObj)[ix] != testValue)

{

error = 1;

break;

}

if (testValue == SCHAR_MAX)

testValue = SCHAR_MIN;

else

++testValue;

}

if (error)

break;

}

// Return a success or an error code.

return error;

//lint -e{550} suppress "'item' not accessed"

}

#endif

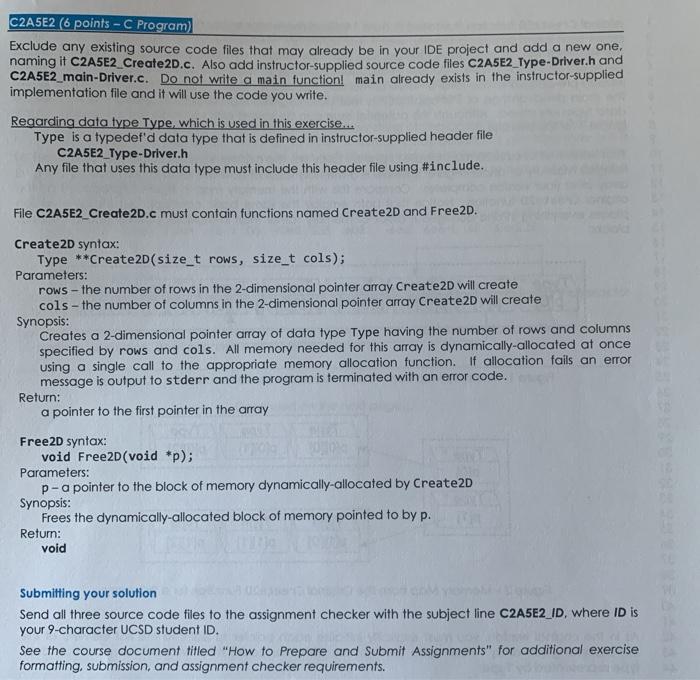

C2A5E2 (6 points - Program) Exclude any existing source code files that may already be in your IDE project and add a new one, naming it C2A5E2_Create2D.c. Also add instructor-supplied source code files C2A5E2 Type-Driver.h and C2A5E2_main-Driver.c. Do not write a main function! main already exists in the instructor-supplied implementation file and it will use the code you write. Regarding data type Type, which is used in this exercise... Type is a typedef'd data type that is defined in instructor-supplied header file C2A5E2_Type-Driver.h Any file that uses this data type must include this header file using #include. File C2A5E2_Create 2D.c must contain functions named Create2D and Free2D. Create2D syntax: Type **Create2D(size_t rows, size_t cols); Parameters: rows - the number of rows in the 2-dimensional pointer array Create2D will create cols - the number of columns in the 2-dimensional pointer array Create2D will create Synopsis: Creates a 2-dimensional pointer array of data type Type having the number of rows and columns specified by rows and cols. All memory needed for this array is dynamically-allocated at once using a single call to the appropriate memory allocation function. If allocation fails an error message is output to stderr and the program is terminated with an error code. Return: a pointer to the first pointer in the array Free2D syntax: void Free2D(void *p); Parameters: p-a pointer to the block of memory dynamically-allocated by Create2D Synopsis: Frees the dynamically-allocated block of memory pointed to by p. Return: vold Submitting your solution Send all three source code files to the assignment checker with the subject line C2A5E2_ID, where ID is your 9-character UCSD student ID. See the course document titled "How to Prepare and Submit Assignments" for additional exercise formatting, submission, and assignment checker requirements
