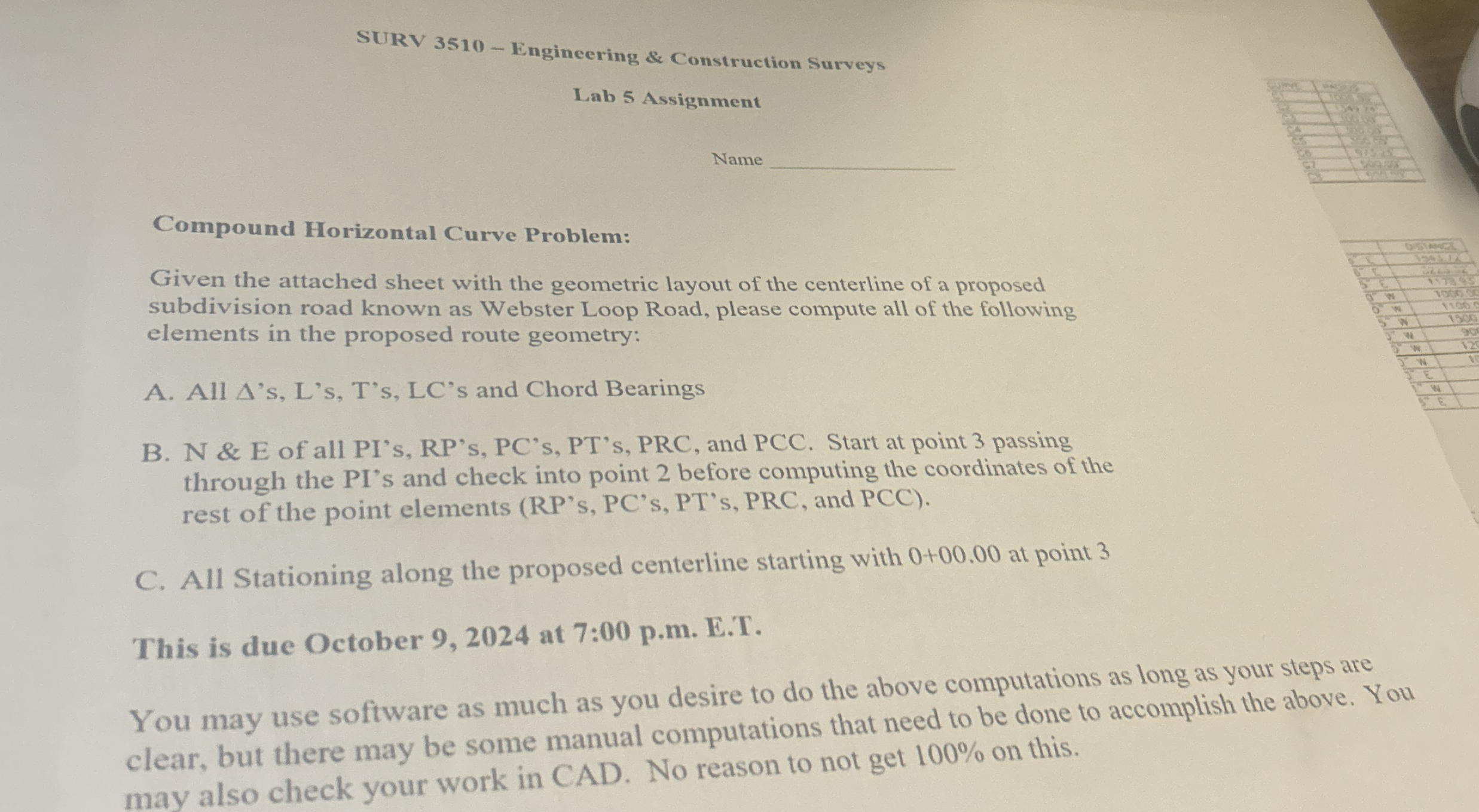

SURV $3510-$ Engineering & Construction Surveys

Lab $5$ Assignment

Name $q,$

Compound Horizontal Curve Problem:

Given the attached sheet with the geometric layout of the centerline of a proposed subdivision road known as Webster Loop Road, please compute all of the following elements in the proposed route geometry:

A$.$ All A$\text{'}$s$,$ L$\text{'}$s$,$ T$\text{'}$s$,$ LC$\text{'}$s and Chord Bearings

B$.$ N & E of all PI's, RP$\text{'}$s$,$ PC$\text{'}$s$,$ PT$\text{'}$s$,$ PRC$,$ and PCC$.$ Start at point $3$ passing through the PI's and check into point $2$ before computing the coordinates of the rest of the point elements $($RP$\text{'}$s$,$ PC$\text{'}$s$,$ PT$\text{'}$s$,$ PRC$,$ and PCC$).$

C$.$ All Stationing along the proposed centerline starting with $0+00\mathrm{.}00$ at point $3$

This is due October $9,2024$ at $7$:$00$ p$.$m$.$ E$.$T$.$

You may use software as much as you desire to do the above computations as long as your steps are clear, but there may be some manual computations that need to be done to accomplish the above. You may also check your work in CAD. No reason to not get $100\%$ on this.
