Question: Switch 1 in the circuit shown below has been closed for a long time before it is opened at t = 0 . Switch 2

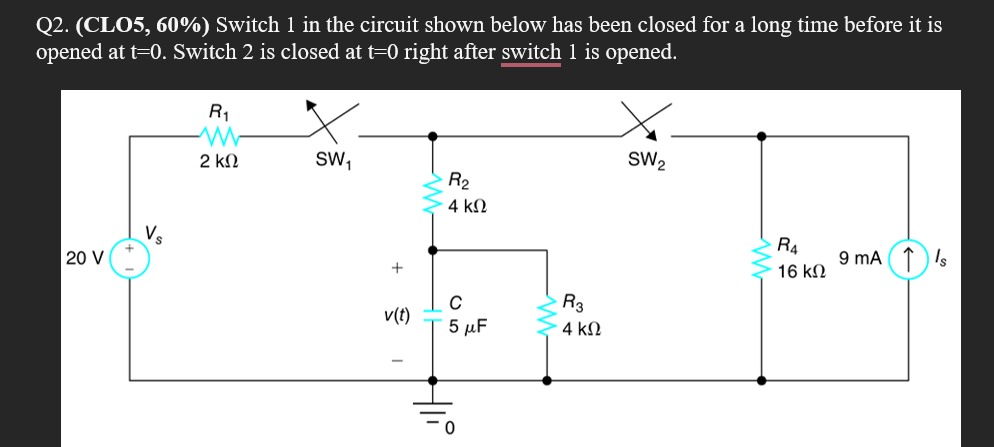

Switch 1 in the circuit shown below has been closed for a long time before it is opened at t=0. Switch 2 is closed at t=0 right after switch 1 is opened.
Switch 1 in the circuit shown below has been

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
