Question: s.) The switch in the circuit shown below has been closed for a long time before opening at t=0. (a) Is this natural or step

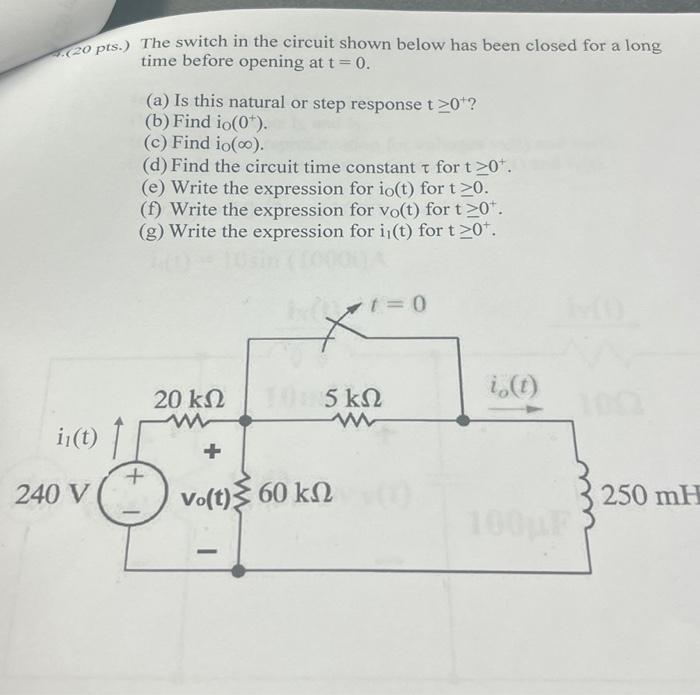

s.) The switch in the circuit shown below has been closed for a long time before opening at t=0. (a) Is this natural or step response t0+? (b) Find iO(0+). (c) Find i0(). (d) Find the circuit time constant for t0+. (e) Write the expression for i0(t) for t0. (f) Write the expression for vO(t) for t0+. (g) Write the expression for i1(t) for t0+

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Problem 3 : The switch in the circuit shown below has been closed for a long time and is opened at t = 0 . Find the initial voltage across the capacitor, i . e . , v ( 0 ) ; the time - constant for t...

Problem 4 : The switch in the circuit shown below has been closed for a long time and is opened at t = 0 . Find the initial current through the inductor, i . e . , i ( 0 ) ; the time - constant for t...

Problem 1 ( 3 5 points ) - For the circuit shown, the switch has been open a long time and is closed at time \ ( \ mathrm { t } - 0 \ ) . a ) Find the voltage across the capacitor just before the...

3) The switch in the circuit of Figure has been closed for a long time. At t=0, the switch is opened. Find io for t>0. 24 V 352 1=0 x 4 4 H m www io 892

Question # 1 The switch in the circuit shown below has been closed a long time before opening at t = 0 seconds. Determine the output v 0 ( t ) for t > 0 seconds. Sketch the resulting function and...

100v Capacitor Natural Response t=o 4K52 2K5 Seks Ve The switch has been closed for a long time before. opening at t=0. Find: a) The Simplified steady-state circuit at t = -00 b) The simplified...

The switch in the circuit shown in the figure has been closed for a long time. The switch opens at t = 0 . Find V 0 ( t ) for t 0

ots) The switch in the circuit shown below has been in the position a for a long time before switching to the position b at t=0. (a) Is this natural or step response for t0+? (b) Find vC(0+). (c)...

please solve asap s) The switch in the circuit shown below has been in the position a for a long time before switching to the position b at t=0. (a) Is this natural or step response for t0+? (b) Find...

2 2 0 Response of First - Order RL and RC Circuits ASSESSMENT PROBLEMS Objective 1 - Be able to determine the natural response of both RL and RC circui 7 . 1 The switch in the circuit shown has been...
