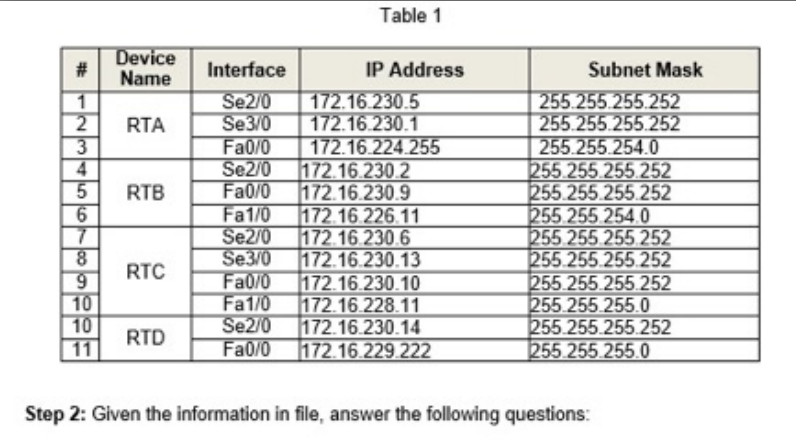

Table 1 # Device Name RTA RTB Interface IP Address Se270 172.16.230.5 Se3/0 172.16.230.1 Fa0/0 172.16.224.255 Se2/0 172.16.230.2 Fa0/0 172.16.230.9 Fa 170 172.16.226.11 Se270 172.16.230.6 Se 370 172.16.230.13 Fa070 172.16.230.10 Fa 170 172.16.228.11 Se270 172.16.230.14 Fa0/0 0 172.16.229.222 6 7 8 9 10 10 11 Subnet Mask 255.255.255.252 255.255.255.252 255.255.254.0 1255.255.255.252 255.255.255.252 255 255 2540 255 255.255.252 255.255.255.252 255.255.255.252 255.255.255.0 255.255.255.252 255.255.255.0 RTC RTD Step 2: Given the information in file, answer the following questions: b. What is the network address of each of these subnets? (Hint Given the IP address and the subnet mask you can calculate the network address using AND operation). Label the subnets in the topology given in Figure 1, and complete Table 2 below. Table 2 Subnet # 1 2 Network Address 172.16.224.0 172.16.230.0 Broadcast Address 172.16.225.255 172.16.230.3 Range of usable addresses 172.16.224.1 - 172.16.225.254 172.16.230.1 - 172.16.230.2
