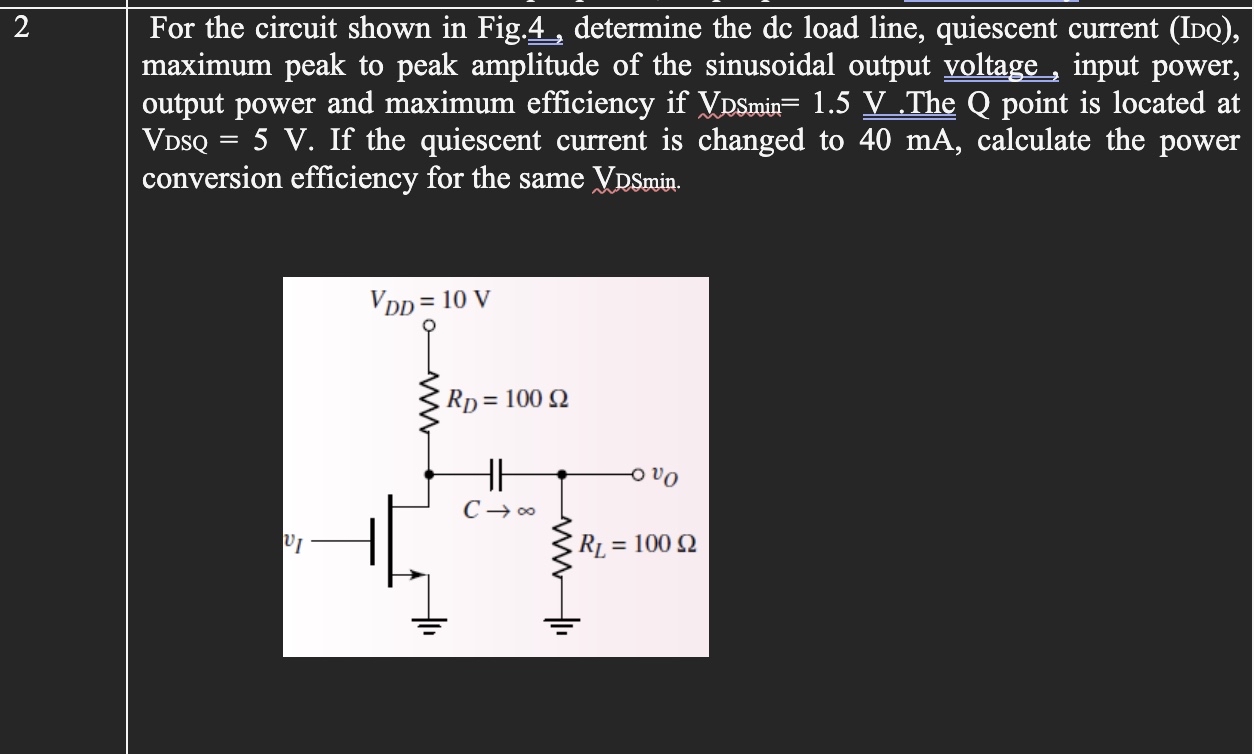

Question: table [ [ 2 , For the circuit shown in Fig. 4 , determine the dc load line, quiescent current ( IDQ ) ,

\table[[2,For the circuit shown in Fig. 4, determine the dc load line, quiescent current (IDQ),]] maximum peak to peak amplitude of the sinusoidal output voltage , input power, output power and maximum efficiency if VDSmin2=1.5V. The Q point is located at VDsQ =5V. If the quiescent current is changed to 40 mA , calculate the power conversion efficiency for the same VDSmin.
\ table [ [ 2 , For the circuit shown in Fig. 4 ,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
