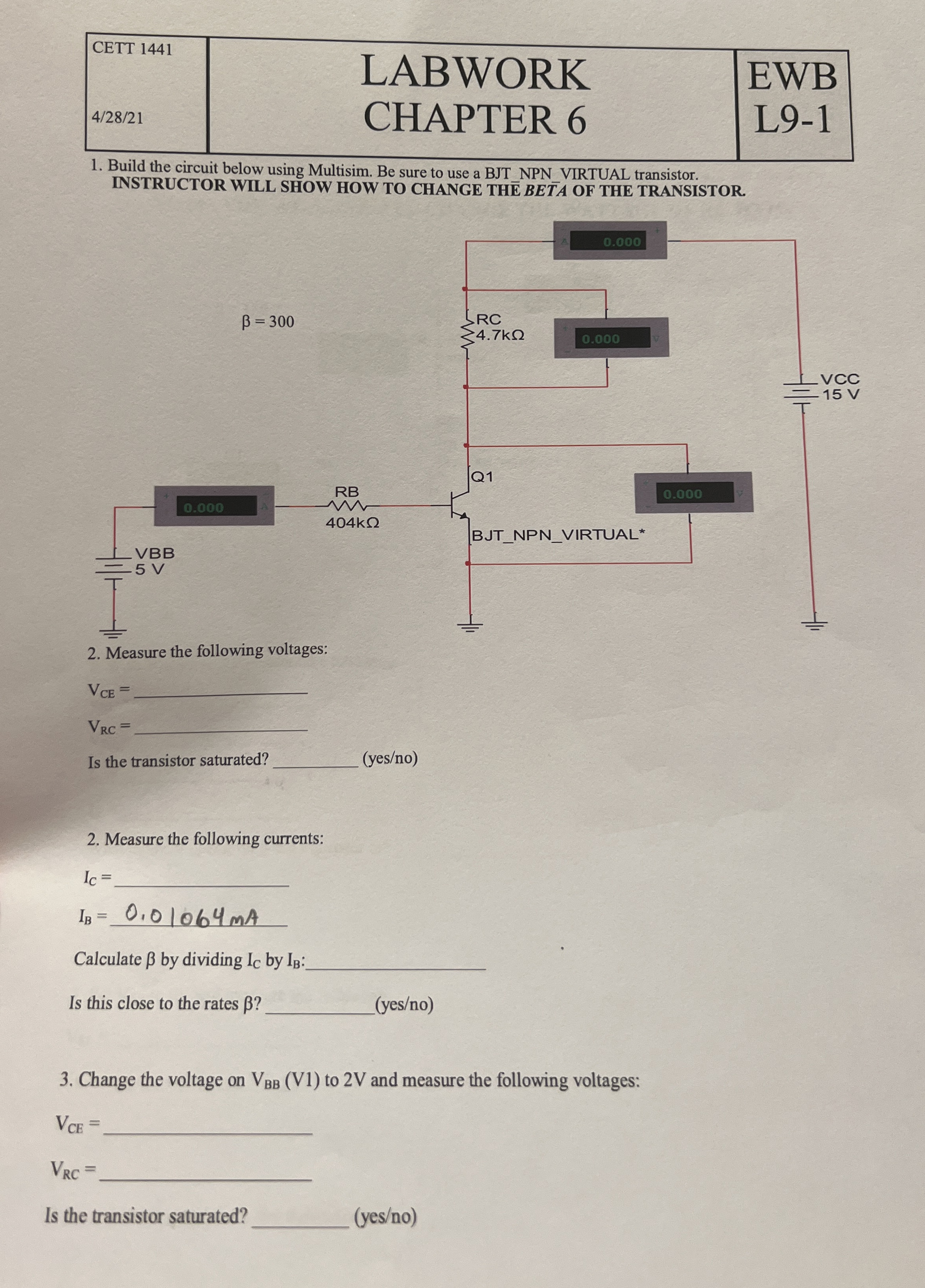

Build the circuit below using Multisim. Be sure to use a BJT$\_$NPN$\_$VIRTUAL transistor. INSTRUCTOR WILL SHOW HOW TO CHANGE THE $\frac{?}{\text{b}\text{a}\text{r}}\frac{\frac{?}{\text{B}\text{E}\text{T}\text{A}}}{b}ar(T)$ OF THE TRANSISTOR.

Measure the following voltages:

$V_{CE}=q,$

$V_{RC}=q,$

Is the transistor saturated? $($yes$/$no$)$

$$

Measure the following currents:

$I_C=$

$$

$I_B=0\mathrm{.}01064mA$

$q,$

Calculate $$ by dividing $I_C$ by $I_B$ : $$

Is this close to the rates $?($yes$/$no$)$

$3.$ Change the voltage on $V_{BB}(V1)$ to $2$ V and measure the following voltages:

$V_{CE}=$

$V_{RC}=$

Is the transistor saturated? $($yes$/$no$)$
