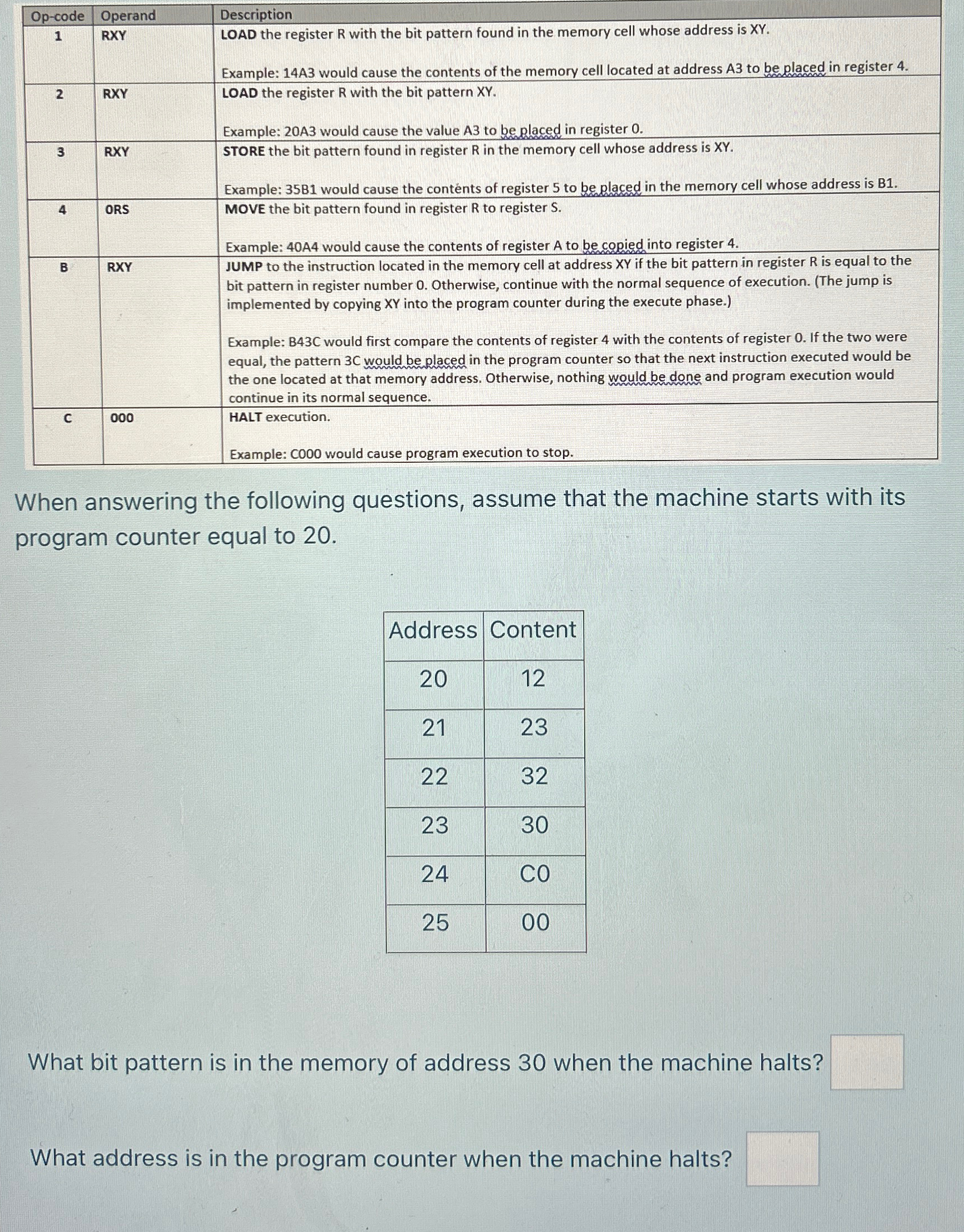

Question: table [ [ Op - code,Operand,Description ] , [ 1 , RXY , table [ [ LOAD the register R with the bit

\table[[Op-code,Operand,Description],[1,RXY,\table[[LOAD the register R with the bit pattern found in the memory cell whose address is xY.],[Example: 14A3 would cause the contents of the memory cell located at address A3 to beplaced in register 4.]]],[2,RXY,Example: 20A3 would cause the value A3 to be placed in register 0.],[3,RXY,STORE the bit pattern found in register R in the memory cell whose address is XY.],[4,ORS,MOVE the bit pattern found in register R to register S.],[B,RXY,\table[[JUMP to the instruction located in the memory cell at address XY if the bit pattern in register R is equal to the],[bit pattern in register number 0. Otherwise, continue with the normal sequence of execution. (The jump is],[implemented by copying XY into the program counter during the execute phase.)],[Example: B43C would first compare the contents of register 4 with the contents of register 0. If the two were],[equal, the pattern 3C would be placed in the program counter so that the next instruction executed would be],[the one located at that memory address. Otherwise, nothing would be done and program execution would],[continue in its normal sequence.]]],[c,000,\table[[HALT execution.],[Example: CO00 would cause program execution to stop.]]]]
When answering the following questions, assume that the machine starts with its program counter equal to 20.
\table[[Address,Content],[20,12],[21,23],[22,32],[23,30],[24,C0
\ table [ [ Op - code,Operand,Description ] , [ 1
