Question: table [ [ table [ [ Current ] , [ State ] ] , table [ [ Next ] , [ State

\table[[\table[[Current],[State]],\table[[Next],[State]],Output],[G,],[00,01,0,0],[01,11,1,0],[10,00,0,1],[11,10,1,1]]

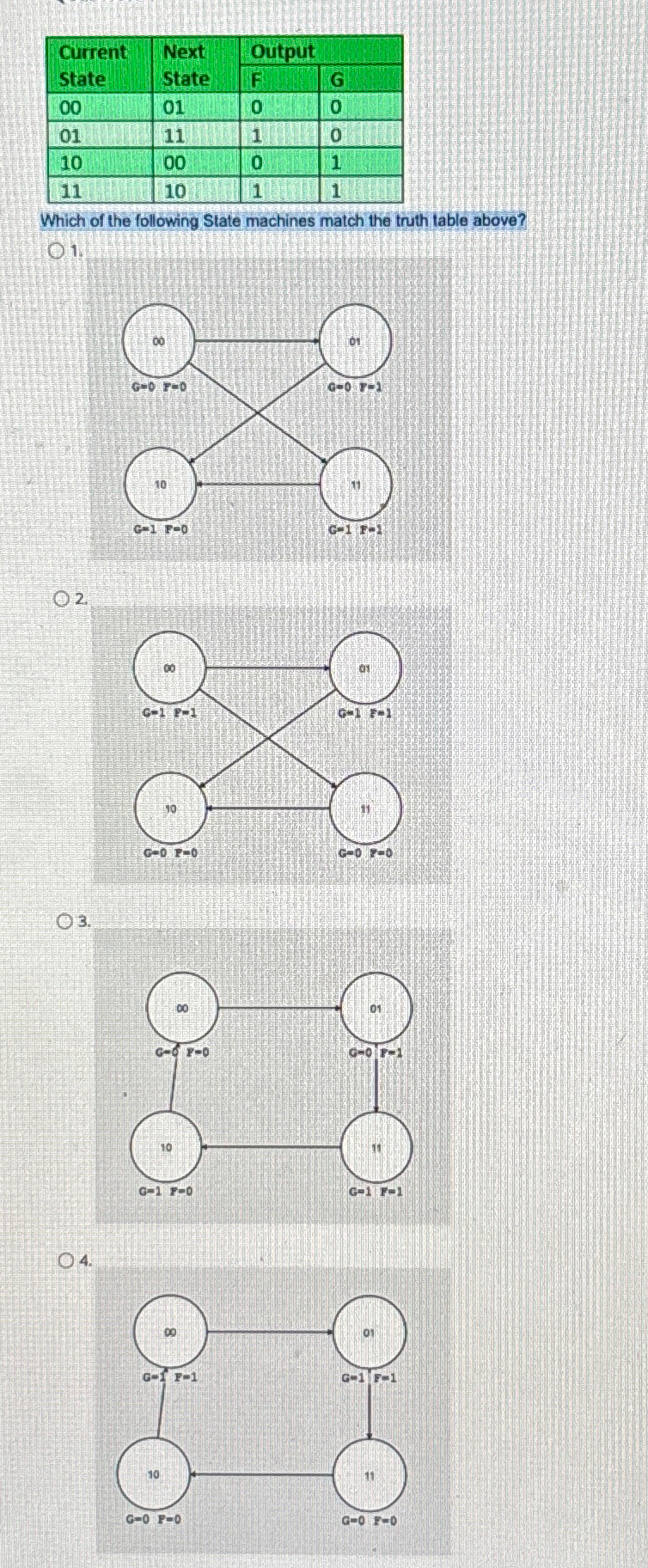

Which of the following State machines match the truth table above?
1.
2.
3.
\table[[\table[[Current],[State]],\table[[Next],[State]],Output],[G,],[00,01,0,0],[01,11,1,0],[10,00,0,1],[11,10,1,1]] Which of the following State machines match the truth table

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
