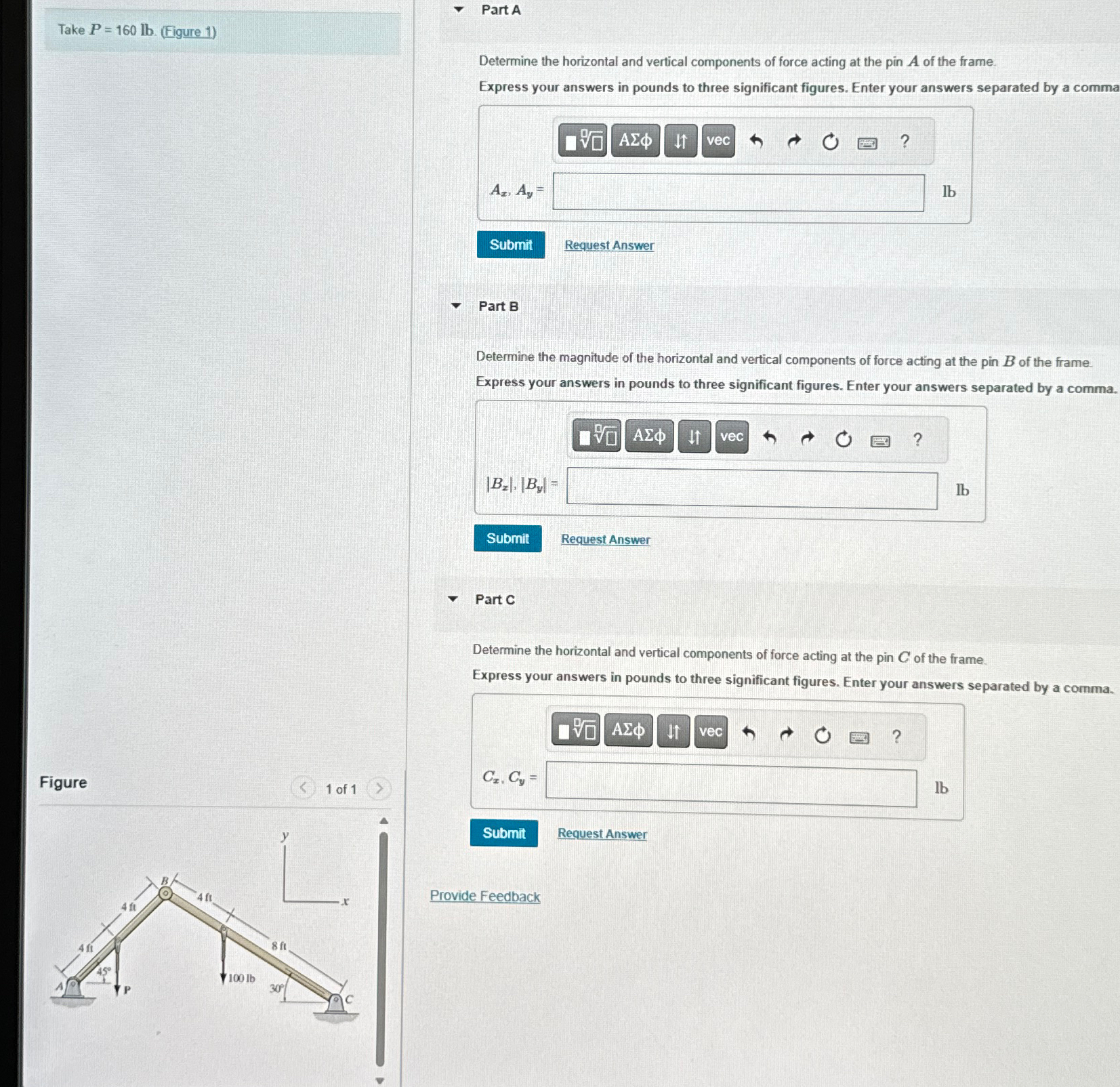

Question: Take P = 1 6 0 l b . ( Figure 1 ) A x , A y = Determine the horizontal and vertical components

Take P=160lb.(Figure 1)
Ax,Ay=
Determine the horizontal and vertical components of force acting at the pin A of the frame.
Express your answers in pounds to three significant figures. Enter your answers separated by a comma
Request Answer
Part B
Determine the magnitude of the horizontal and vertical components of force acting at the pin B of the frame.
Express your answers in pounds to three significant figures. Enter your answers separated by a comma.
|Bx|,|By|=
lb
Part C
Determine the horizontal and vertical components of force acting at the pin C of the frame.
Express your answers in pounds to three significant figures. Enter your answers separated by a comma.
Figure
1 of 1
Cx,Cy=
lb
Request Answer
Provide Feedback
Take P = 1 6 0 l b . ( Figure 1 ) A x , A y =
