Question: Task 2 The rigid beam shown in Fig. 2 is in equilibrium. A is a fixed support and E is a roller support C is

Task 2
The rigid beam shown in Fig. 2 is in equilibrium. A is a fixed support and E is a roller support
C is an internal hinge.
Draw the free body diagram and calculate the supports reactions
Calculate the internal forces and moment at point B
Calculate the internal shear force to the left and right of point D.

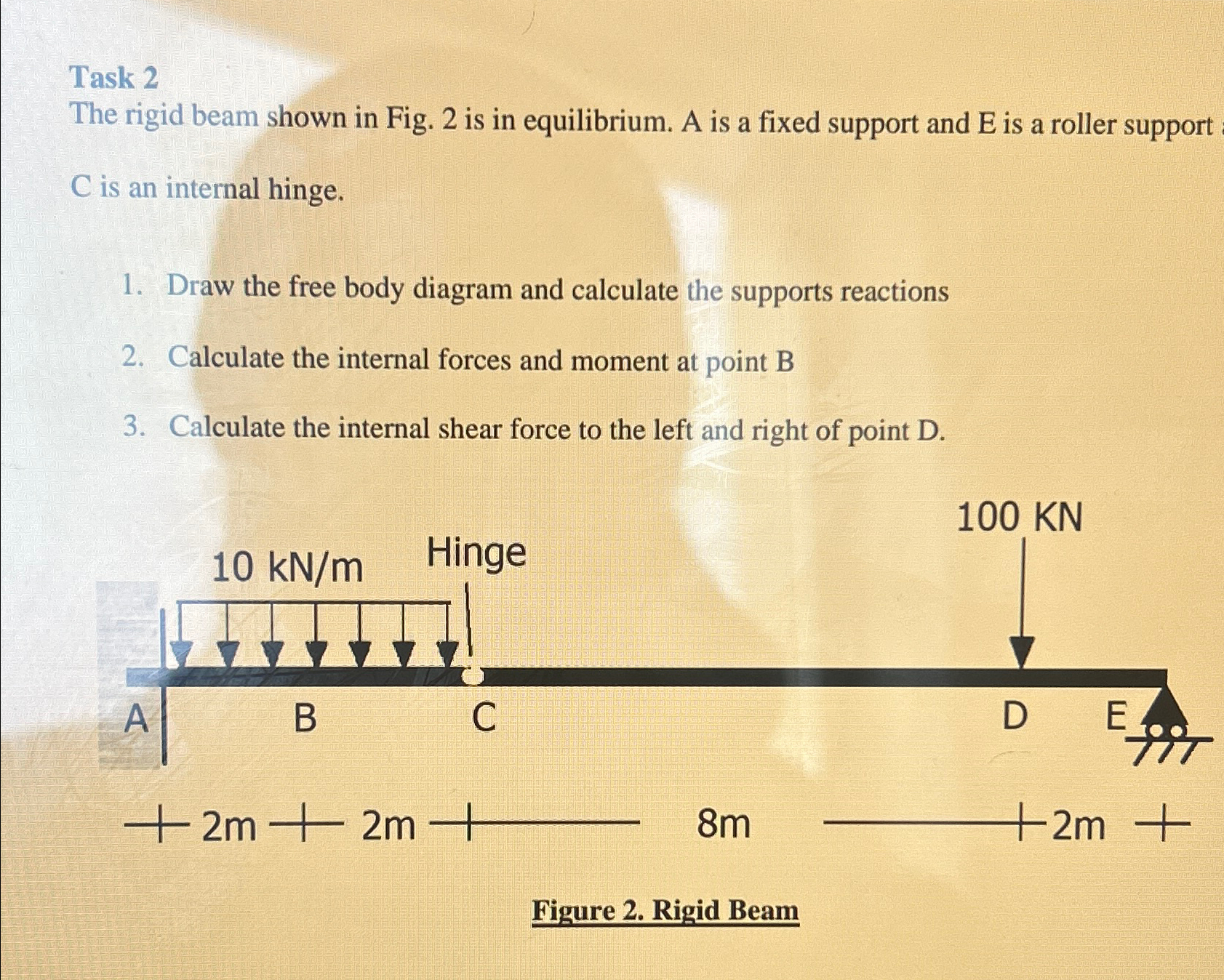

Figure 2. Rigid Beam
Task 2 The rigid beam shown in Fig. 2 is in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
