Question: The two - span steel beam shown below has a fixed support at A and roller support at D . The moment hinge at B

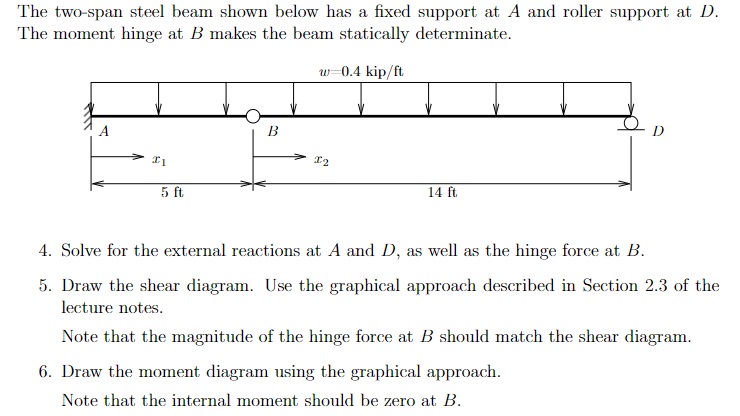

The two-span steel beam shown below has a fixed support at A and roller support at D. The moment hinge at B makes the beam statically determinate.
4. Solve for the external reactions at A and D, as well as the hinge force at B.
5. Draw the shear diagram. Use the graphical approach described in Section 2.3 of the lecture notes.
Note that the magnitude of the hinge force at B should match the shear diagram.
6. Draw the moment diagram using the graphical approach.
Note that the internal moment should be zero at B.
The two - span steel beam shown below has a fixed
