Question: Task is to draw a Sequence diagrams Use case: Manage admission Actor's action 1. The student submits application System's response 2. Create an application and
Task is to draw a Sequence diagrams

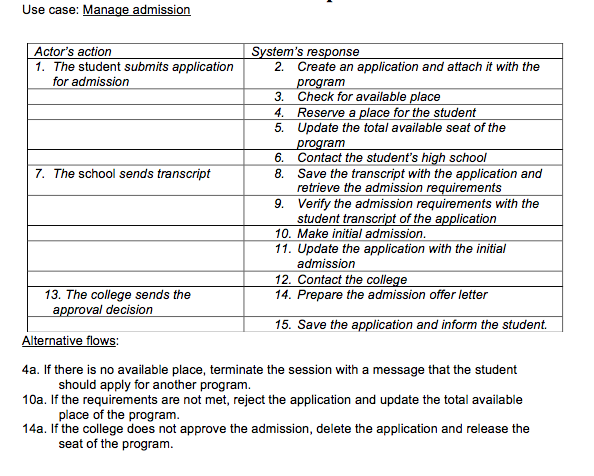

Use case: Manage admission Actor's action 1. The student submits application System's response 2. Create an application and attach it with the for admission ram 3. Check for available place 4. Reserve a place for the student 5. Update the total available seat of the ram 6. Contact the student's high school 7. The school sends transcript 8. Save the transcript with the application and retrieve the admission requirements 9. Verify the admission requirements with the student transcript of the application 10. Make initial admission 11. Update the application with the initial admission 12. Contact the 14. Prepare the admission offer letter 13. The college sends the approval decision 15. Save the application and inform the student. ternative flows 4a. If there is no available place, terminate the session with a message that the student 10a. If the requirements are not met, reject the application and update the total available 14a. If the college does not approve the admission, delete the application and release the should apply for another program. place of the program seat of the program
