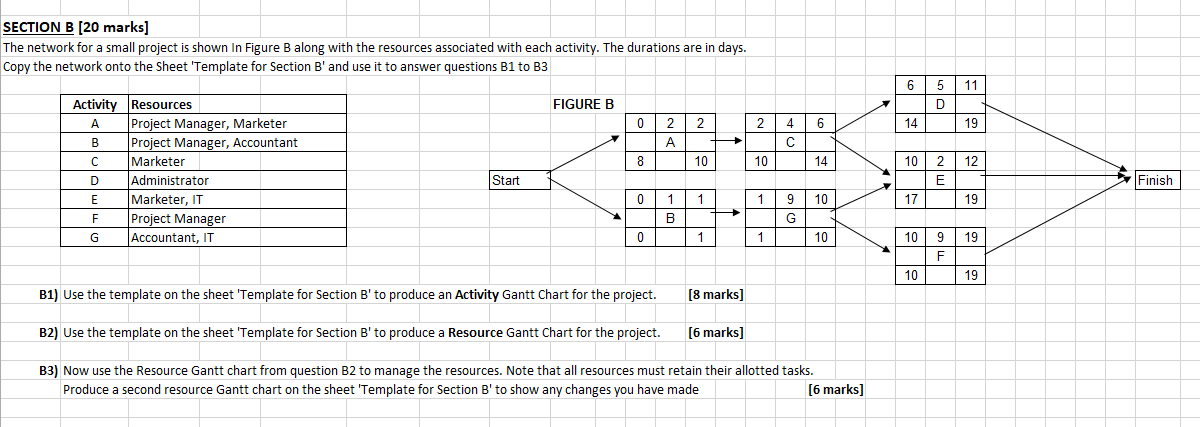

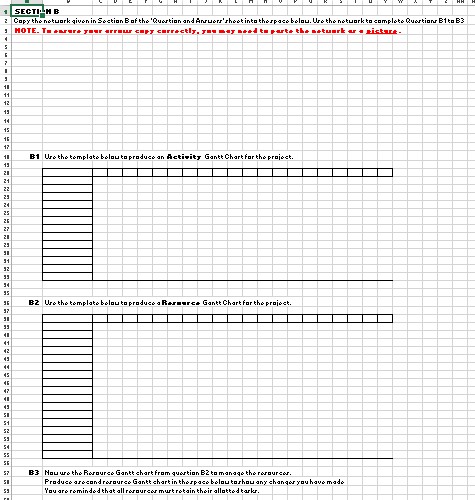

SECTION B [20 marks] The network for a small project is shown in Figure B along with the resources associated with each activity. The durations are in days. Copy the network onto the Sheet 'Template for Section B' and use it to answer questions B1 to B3 6 11 5 D FIGURE B 0 2 2 2 6 14 19 4 8 10 10 14 10 12 Activity Resources A Project Manager, Marketer B Project Manager, Accountant C Marketer D Administrator E Marketer, IT F Project Manager G Accountant, IT 2 E Start Finish 0 1 1 1 10 17 19 9 G B 0 1 1 10 10 19 9 F 10 19 B1) Use the template on the sheet 'Template for Section B' to produce an Activity Gantt Chart for the project. (8 marks] B2) Use the template on the sheet 'Template for Section B' to produce a Resource Gantt Chart for the project. [6 marks] B3) Now use the Resource Gantt chart from question B2 to manage the resources. Note that all resources must retain their allotted tasks. Produce a second resource Gantt chart on the sheet 'Template for Section B' to show any changes you have made [6 marks) SECTI-NB 2 Copy the network given in Section B of the 'Quartion and Arvuerr'sheet into thespace belou. Ure the network to complete Quartion Bito B3 1 HOTE. Tever you are copy correctly. Buto porto the stuerkusistunt " 11 12 13 13 15 16 17 B1 Ure the template bolou to produce an Activity Gantt Chart for the project. 11 13 21 21 33 25 B2 Ure the template bolou to produce. Rerurce Gantt Chart for the project. 36 17 30 20 12 11 49 20 1 ar 15 ar 49 20 40 20 1 31 pa 51 52 53 5 55 SE 57 51 55 B3 Nou we the Rorource Gantt chart from quartien B2 to manage the rorourcer. Produce ar condroource Gantt chart in the space belautashou any change you have made You are reminded that all resource murtretain their allotted tarkr
