Question: The 5 0 - m m - diameter A 9 9 2 steel shaft is subjected to the torques shown where T = 7 5

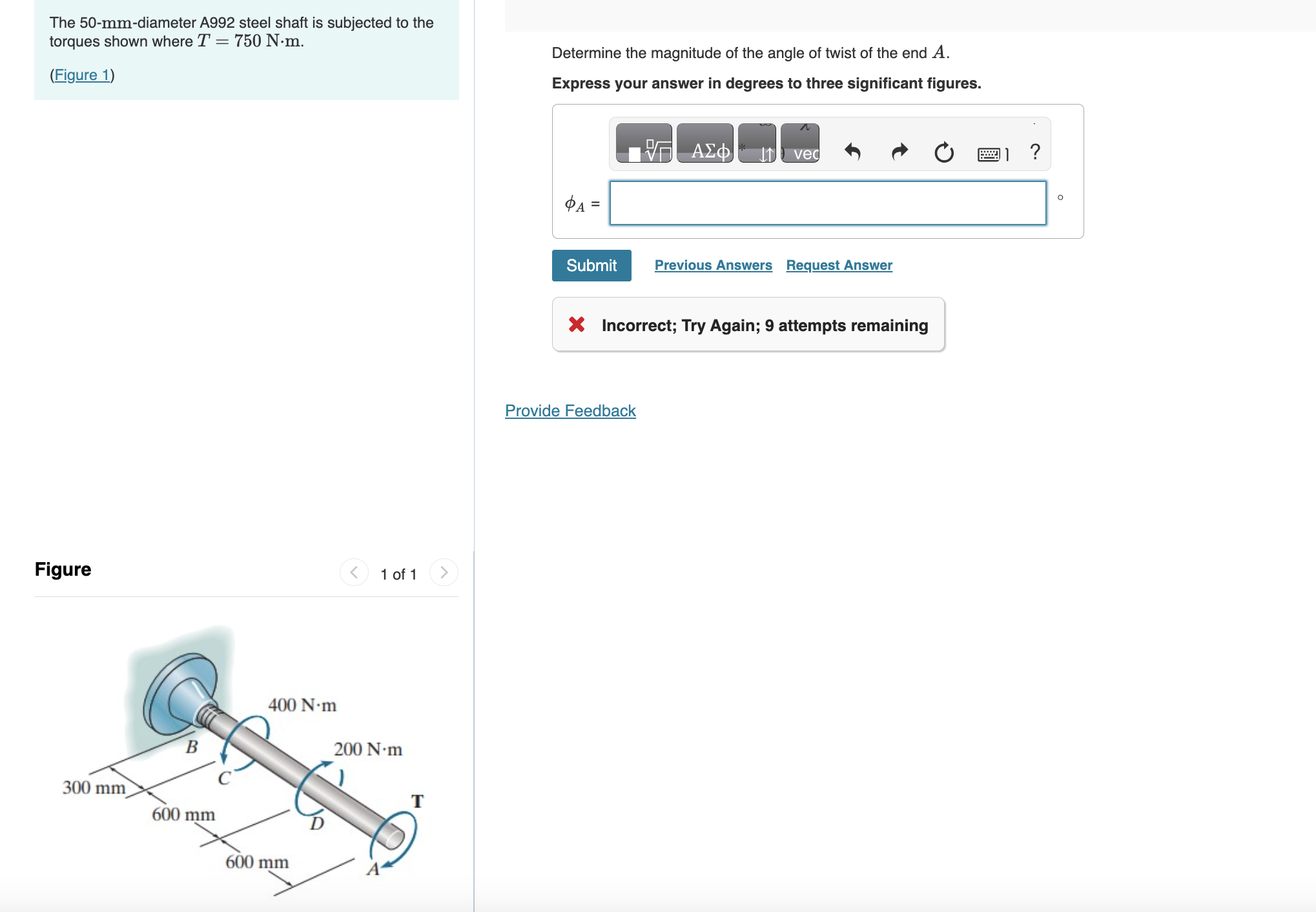

The 50-mm-diameter A992 steel shaft is subjected to the
torques shown where T=750N*m.
Determine the magnitude of the angle of twist of the end A.
Express your answer in degrees to three significant figures.
The 5 0 - m m - diameter A 9 9 2 steel shaft is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
