Question: The 6 - m beam shown carries the given distributed loads w ( x ) , in kN / / m , where x and

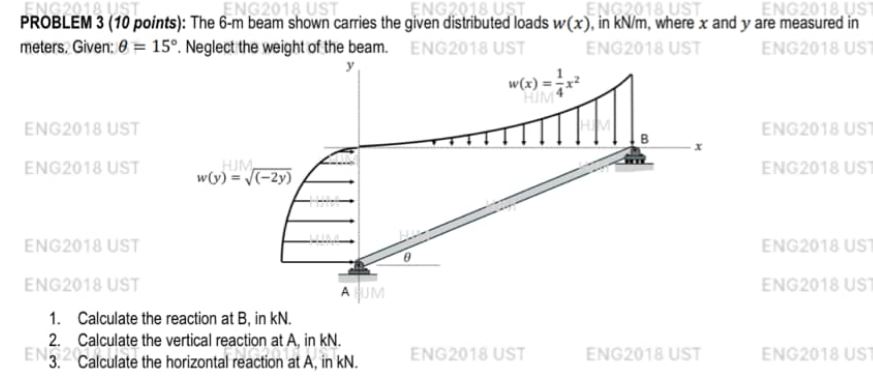

The 6-m beam shown carries the given distributed loads w(x), in kN//m, where x and y are measured in
meters, Given: theta=15. Neglect the weight of the beam.
Calculate the reaction at B , in kN .
Calculate the vertical reaction at A, in kN .
Calculate the horizontal reaction at A , in kN .
The 6 - m beam shown carries the given

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
