Question: The angle shown below is a 5 5 1 2 and is under a service tensile load of 4 8 kips. Assume the distribution of

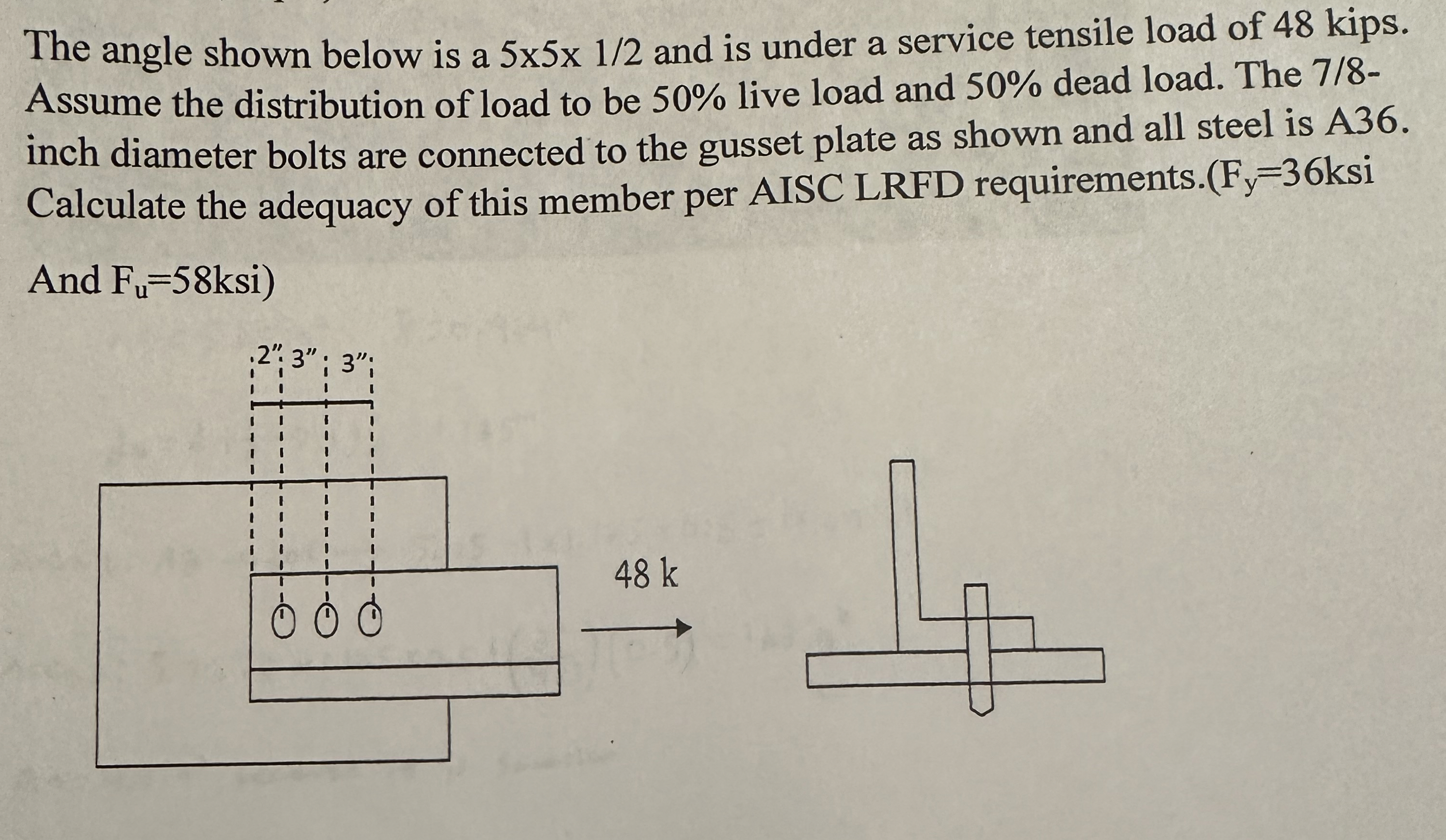

The angle shown below is a 5512 and is under a service tensile load of 48 kips. Assume the distribution of load to be 50% live load and 50% dead load. The 7/8inch diameter bolts are connected to the gusset plate as shown and all steel is A36. Calculate the adequacy of this member per AISC LRFD requirements. (Fy=36ksi
And Fu=58ksi )
