Question: The beam ABCD below is a continuous beam, fixed at A and D and span second moment of area is as shown. Find the support

The beam ABCD below is a continuous beam, fixed at A and

D

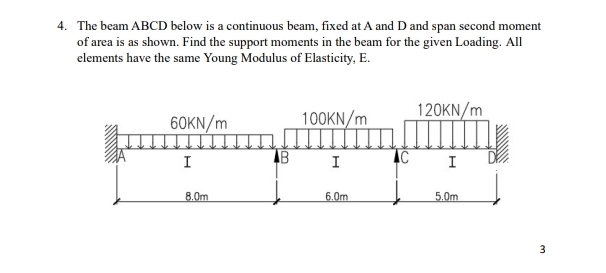

and span second moment of area is as shown. Find the support moments in the beam for the given Loading. All elements have the same Young Modulus of Elasticity, E

.

3

The beam ABCD below is a continuous beam, fixed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
