Question: The beam is in the direction = 2 2 . 5 with the z axis and the effect of a bending moment M with an

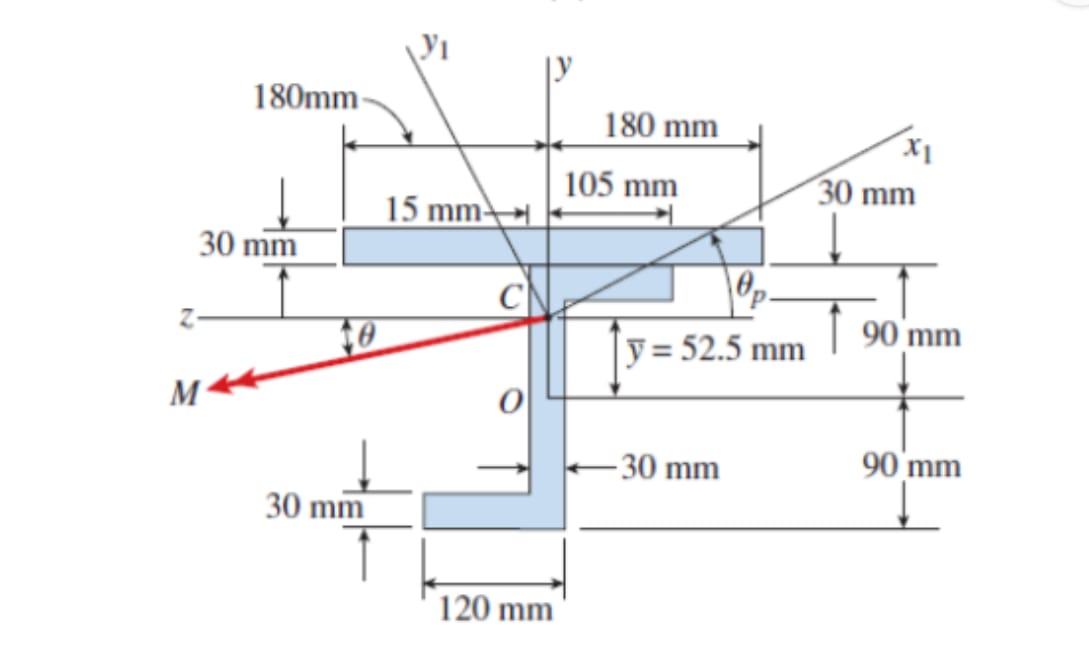

The beam is in the direction =22.5 with the z axis and the effect of a bending moment M with an intensity of 4.5 kNm
is below. Ix1=93.14\times 106 mm4, neutral for Iy1=152.7\times 10^6 mm4 and principal axis direction Theta p =27.3 degrees
Calculate the direction of the axis and the maximum tensile and compressive stresses.
The beam is in the direction = 2 2 . 5 with the z

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
