Question: The beam supports the triangular distributed load shown beicow with w m a x = 5 6 0 l b f t . The reactions

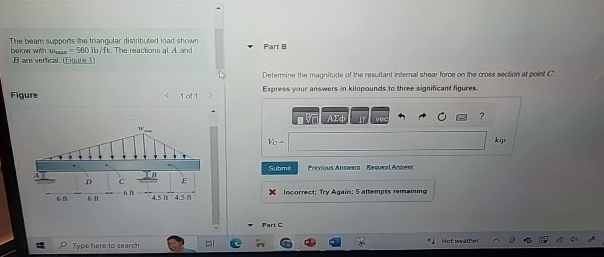

The beam supports the triangular distributed load shown beicow with wmax=560lbft. The reactions al A and B are verfical (Figure 1)
Figure
1 ol 1
Part B
Delermine the magnilude of the resultant internal shear force on the cross section at point C.
Express your answers in kilopounds to three significant figures.
Part C
The beam supports the triangular distributed load

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
