Question: The beam supports the triangular distributed load shown below with w m a x = 8 0 0 l b f t . The reactions

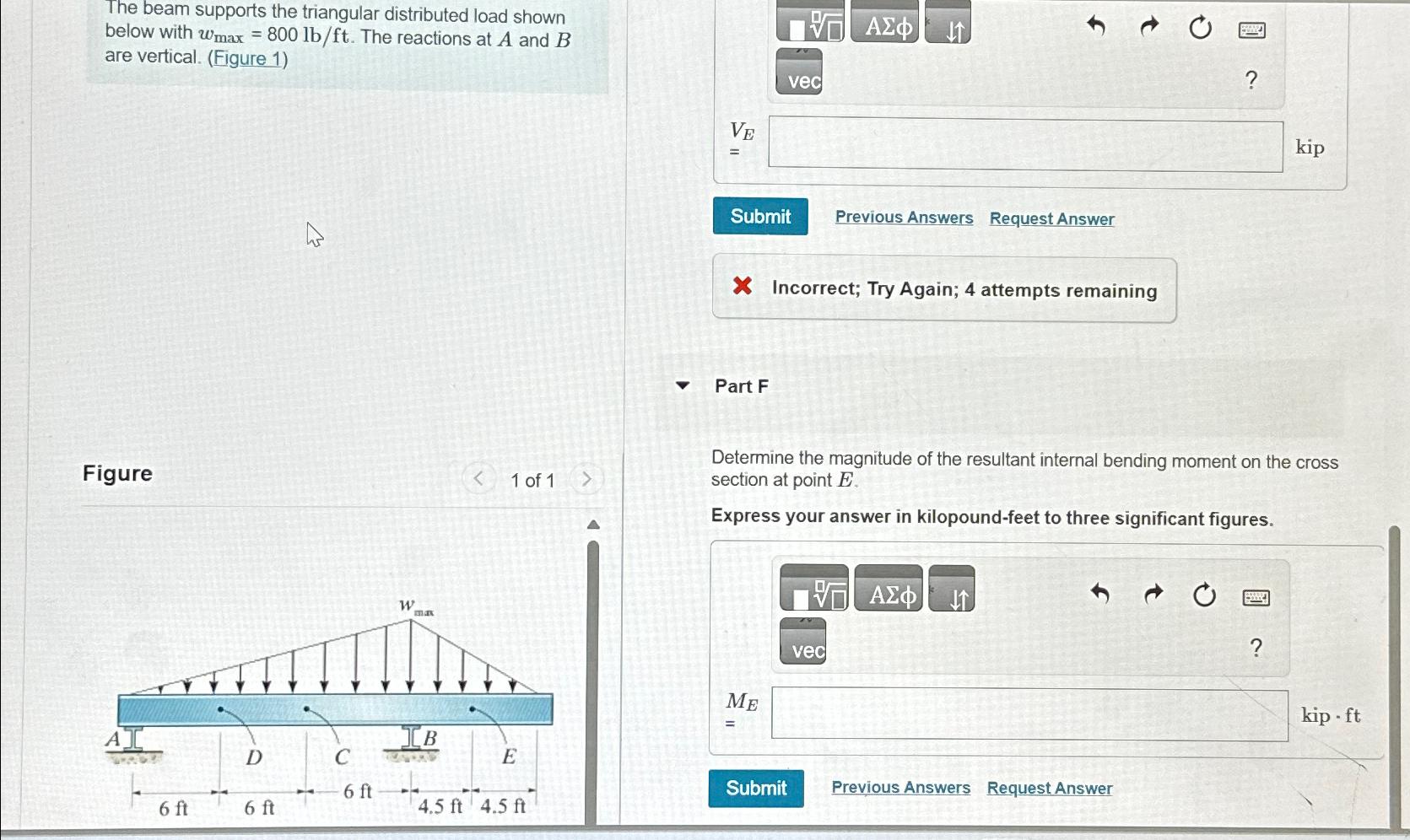

The beam supports the triangular distributed load shown below with wmax=800lbft. The reactions at A and B are vertical. (Figure 1)
Figure
1 of 1
Previous Answers
Request Answer
Incorrect; Try Again; 4 attempts remaining
Part F
Determine the magnitude of the resultant internal bending moment on the cross section at point E.
Express your answer in kilopound-feet to three significant figures.
Previous Answers
Request Answer
The beam supports the triangular distributed load

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
