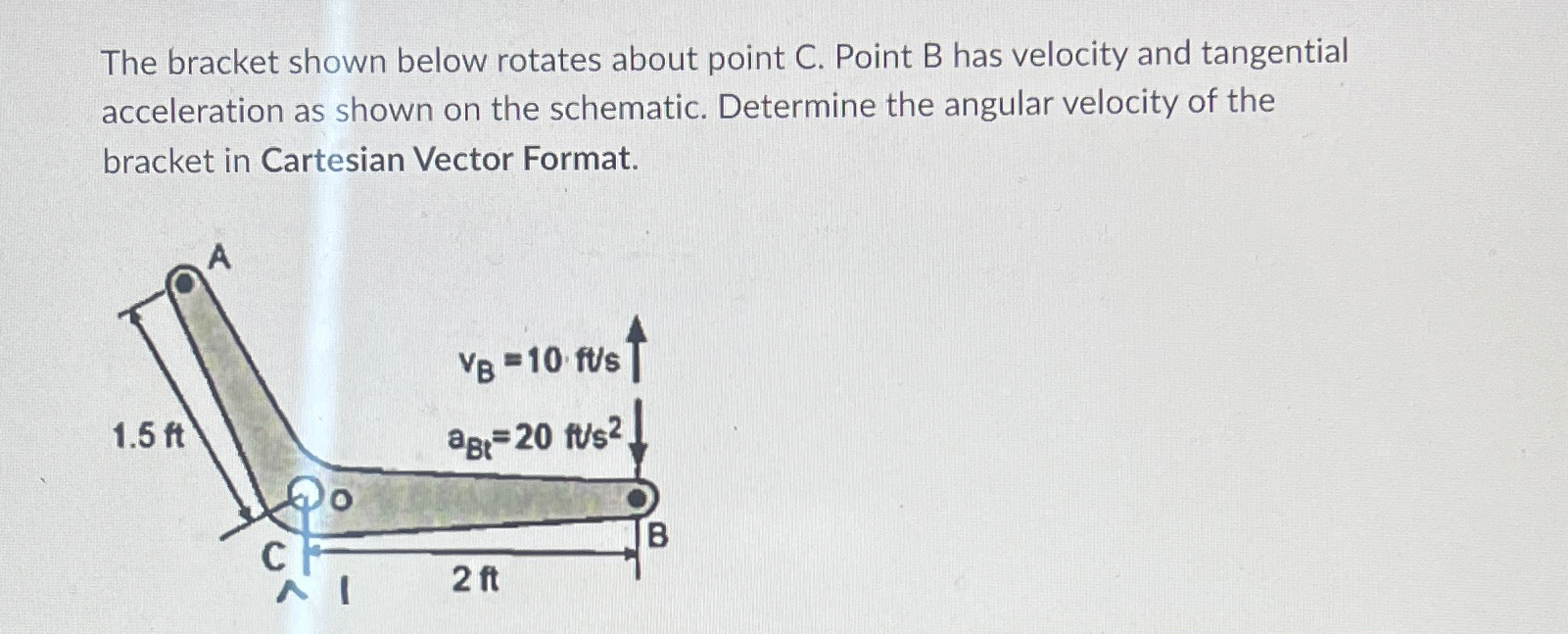

Question: The bracket shown below rotates about point C . Point B has velocity and tangential acceleration as shown on the schematic. Determine the angular velocity

The bracket shown below rotates about point C. Point B has velocity and tangential
acceleration as shown on the schematic. Determine the angular velocity of the
bracket in Cartesian Vector Format.
The bracket shown below rotates about point C .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
