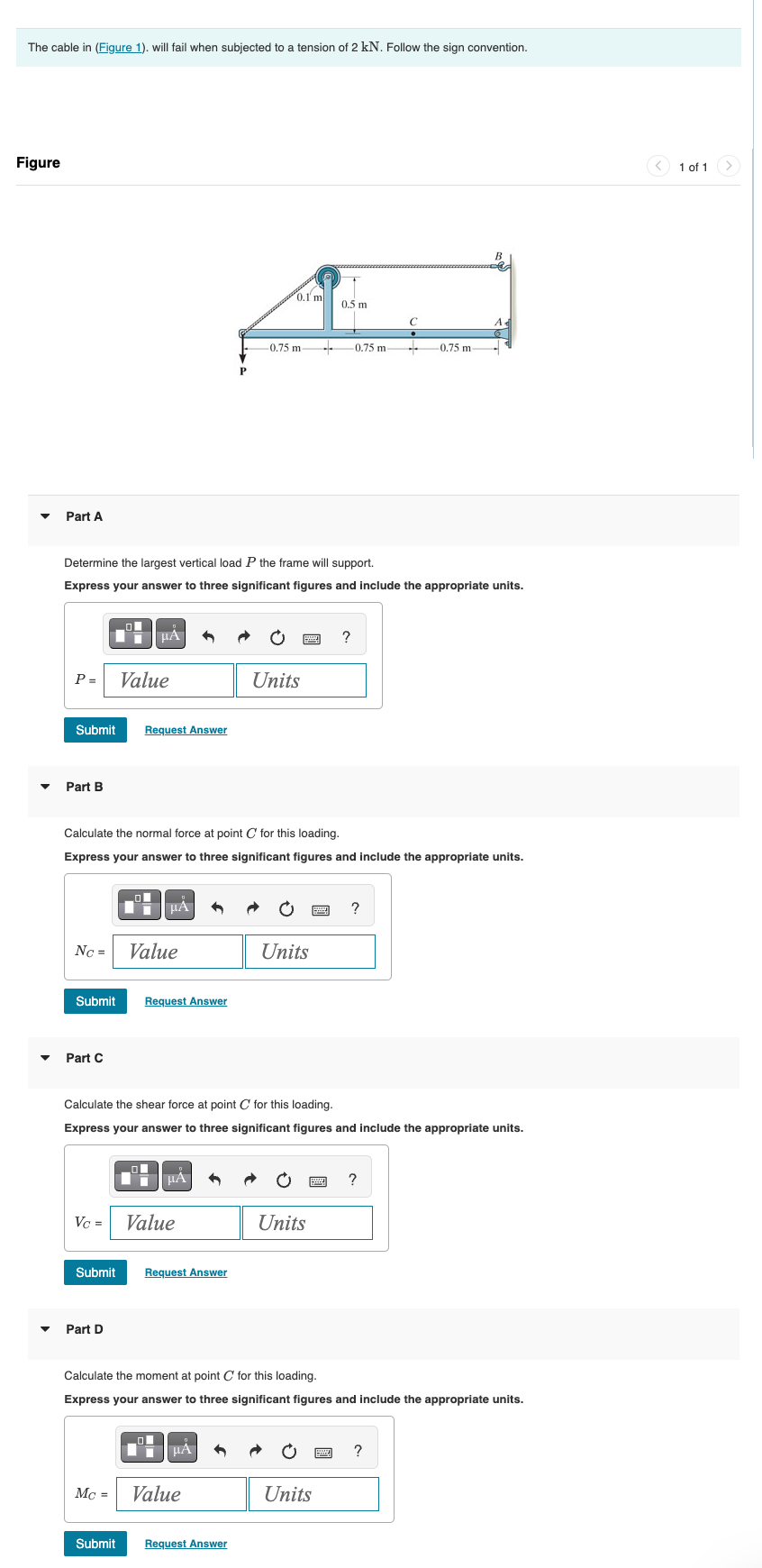

Question: The cable in ( Figure 1 ) . will fail when subjected to a tension of 2 kN . Follow the sign convention. Figure Part

The cable in (Figure 1). will fail when subjected to a tension of 2 kN . Follow the sign convention.
Figure
Part A
Determine the largest vertical load \( P \) the frame will support.
Express your answer to three significant figures and include the appropriate units.
Request Answer
Part B
Calculate the normal force at point \( C \) for this loading.
Express your answer to three significant figures and include the appropriate units.
Part C
Calculate the shear force at point \( C \) for this loading.
Express your answer to three significant figures and include the appropriate units.
Request Answer
Part D
Calculate the moment at point \( C \) for this loading.
Express your answer to three significant figures and include the appropriate units.
