Question: The cables ( AB and A D ) support the pole A C . Knowing that the tension is 1 2 5 0 N in

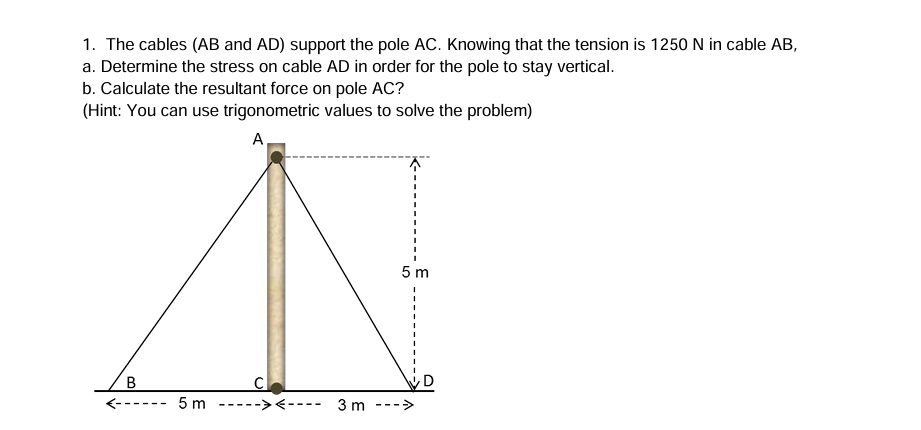

The cables (AB and AD) support the pole AC. Knowing that the tension is 1250N in cable AB,
a. Determine the stress on cable AD in order for the pole to stay vertical.
b. Calculate the resultant force on pole AC?
(Hint: You can use trigonometric values to solve the problem)
The cables ( AB and A D ) support the pole A C .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
