Question: The closed loop transfer function for a system is shown below. Identify the true statements in relation to stability of this system Gc($) = K(+1)

The closed loop transfer function for a system is shown below.

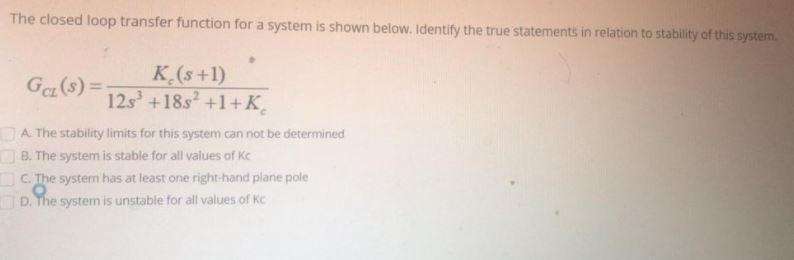

The closed loop transfer function for a system is shown below. Identify the true statements in relation to stability of this system Gc($) = K(+1) 12s +18s? +1+K A. The stability limits for this system can not be determined B. The system is stable for all values of Kc Luc. The system has at least one right-hand plane pole D. The system is unstable for all values of KC

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
