Question: The column load is 2 2 0 kips , and the thickness of the footing is to be 2 0 in . The cohesion of

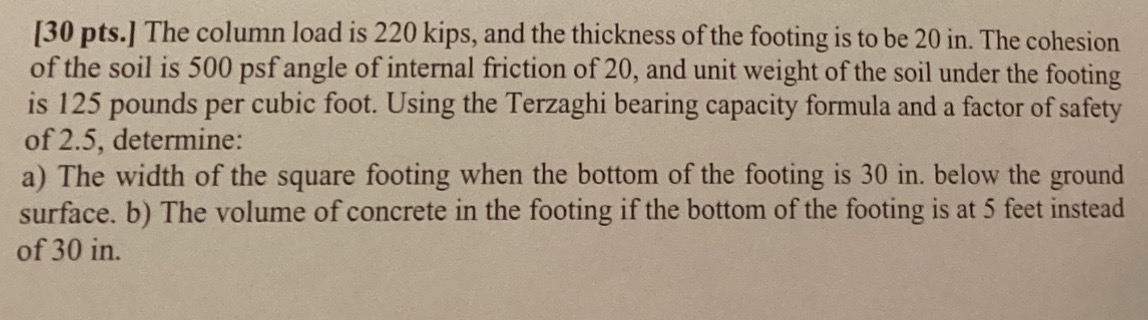

The column load is 220 kips , and the thickness of the footing is to be 20 in . The cohesion of the soil is 500 psf angle of internal friction of 20, and unit weight of the soil under the footing is 125 pounds per cubic foot. Using the Terzaghi bearing capacity formula and a factor of safety of 2.5, determine:
a) The width of the square footing when the bottom of the footing is 30 in . below the ground surface. b) The volume of concrete in the footing if the bottom of the footing is at 5 feet instead of 30 in .
The column load is 2 2 0 kips , and the thickness
