Question: The current source in the circuit below i s ( t ) = 2 c o s ( 3 7 7 t + 1 2

The current source in the circuit below is(t)=2cos(377t+120).
Time left 106:37:50

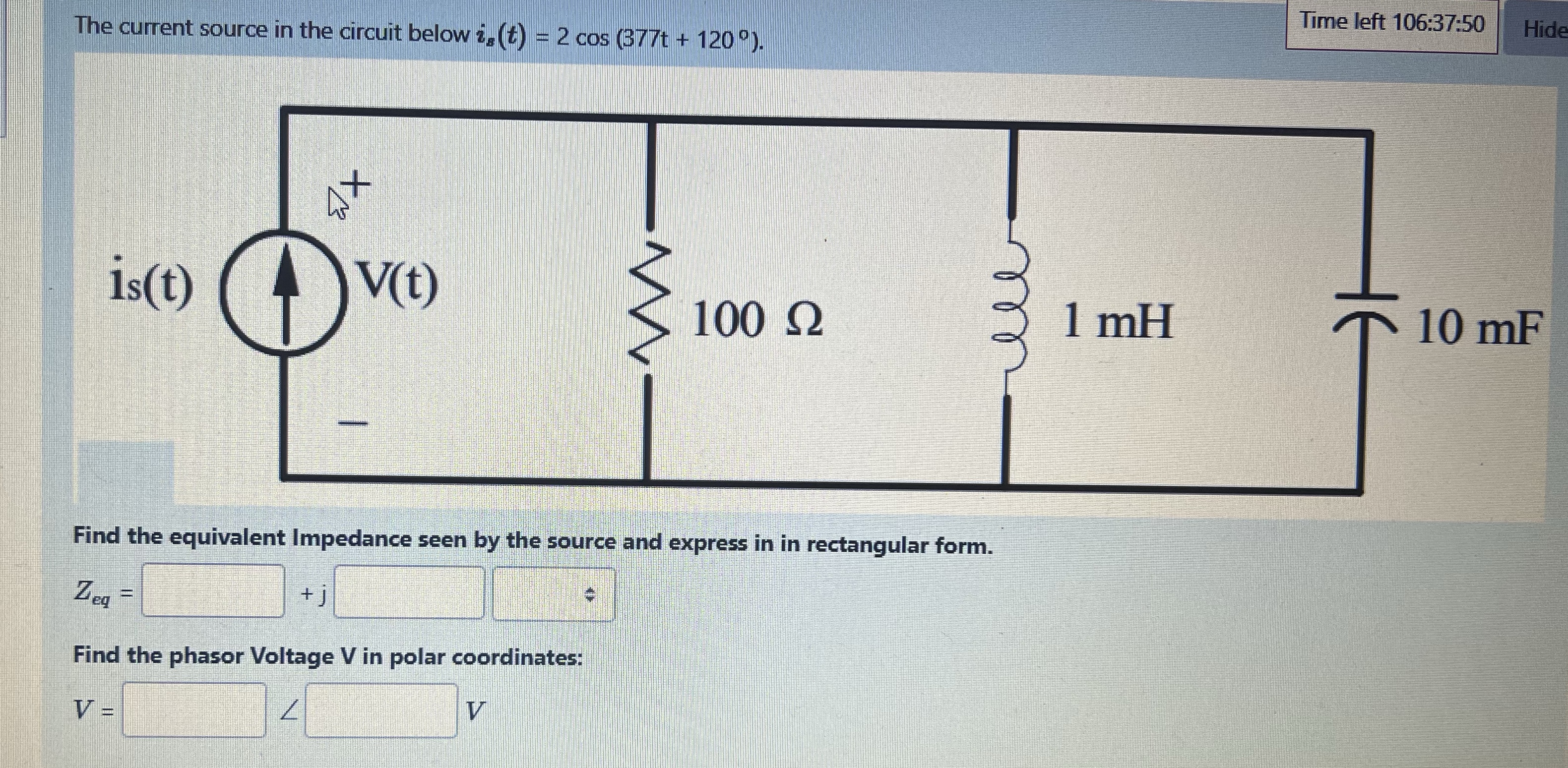

Find the equivalent Impedance seen by the source and express in in rectangular form.
Zeq=
Find the phasor Voltage V in polar coordinates:
V=,??
The current source in the circuit below i s ( t )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
