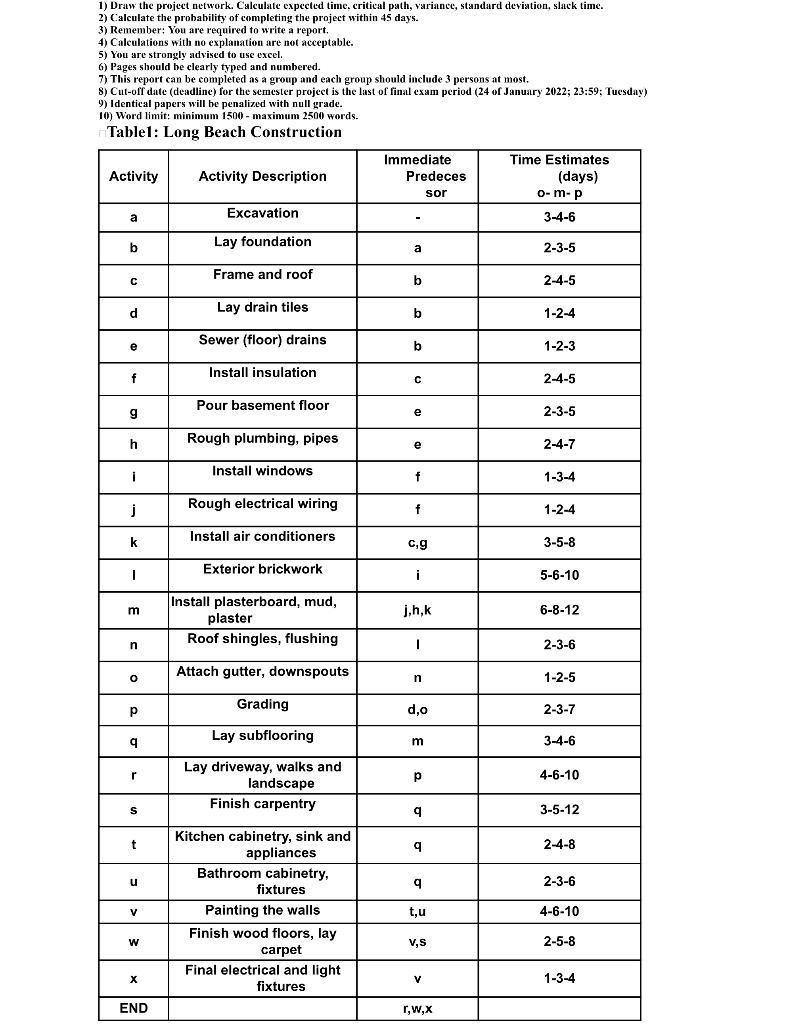

The following data shown in Table I contain activities for planning a site in the Long Beach and the activity time estimates. In addition, the precedence relationships between activities are included. You are expected to investigate the role of project network using CPM and PERT analysis. You are expected to develop a CMP/PERT network for this project and determine the expected project completion time (AOA or AON can be conducted). You are also responsible to prepare a report for your chief project manager and this report needs to address the concerns of the following:

Introduction

An explanation of the model and the methodology used (i.e. CPM and PERT).

Display your estimated outputs using tables and graphs as well as network diagram.

A discussion of the results estimated.

Any other comments you feel relevant to the issues being addressed.

Conclusion and recommendations.

1) Draw the project netwerk. Calculate expected time, critical path, variance, standard deviation, slack time. 2) Calculate the probability of completing the project within 45 days. 3) Remember: Vou are required to write a report. 4) Calculations with no explanation are not acceptable. 5) You are strongly advised to use excel. 6) Pages should be clearly typed and numbered. 7) This report can be completed as a group and each group should include 3 persons at most. 8) Cut-off date (deadline) for the semester project is the last of final exam period (24 of January 2022; 23:59; Tuesday) 9) Identical papers will be penalized with null grade. Iil Ward limit' minimum 1500 - maximum 2500 words
