Question: The frame shown below has a distributed load applied on member A B and a concentrated load applied at joint C . The support at

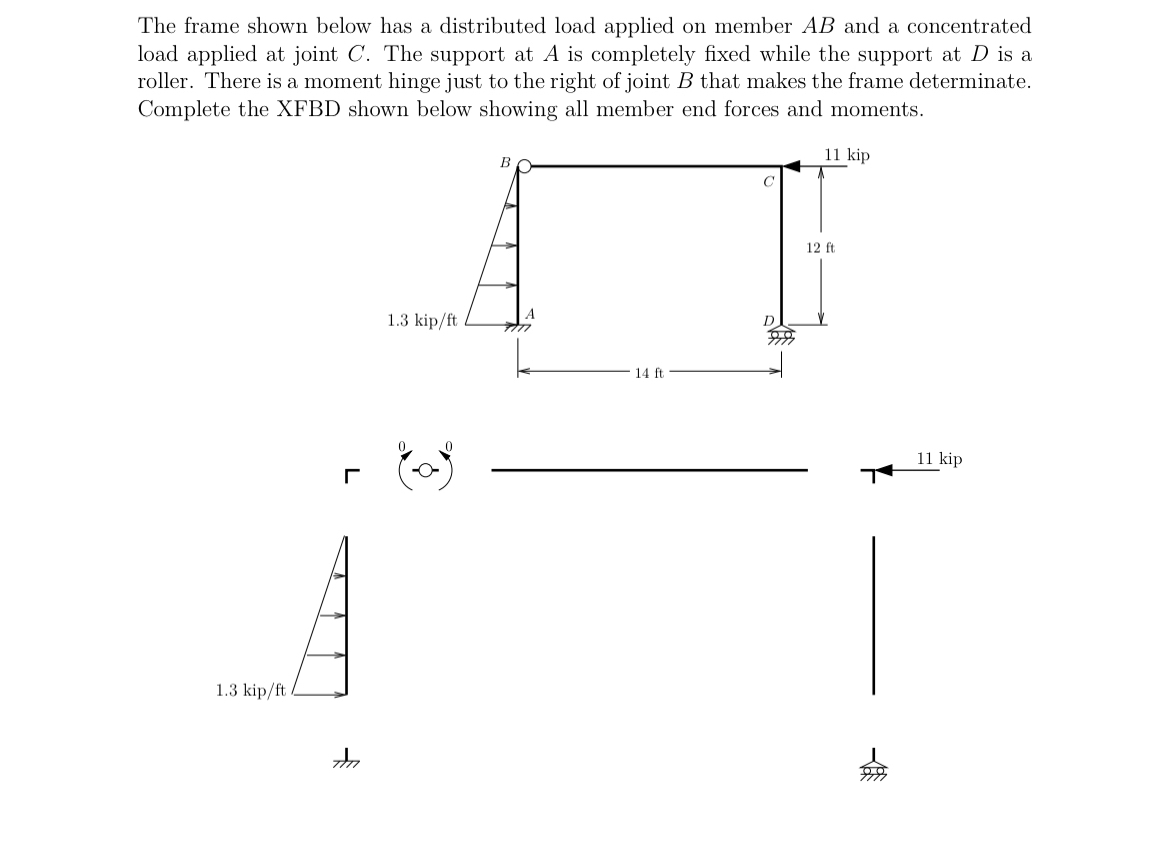

The frame shown below has a distributed load applied on member AB and a concentrated load applied at joint C. The support at A is completely fixed while the support at D is a roller. There is a moment hinge just to the right of joint B that makes the frame determinate. Complete the XFBD shown below showing all member end forces and moments.
(-)0longrightarrow711 kip
1.3kipft
longrightarrow
|||
The frame shown below has a distributed load

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
