Question: The gear train system shown includes shafts ( 1 ) and ( 2 ) , which are solid 1 . 8 1 2 5 -

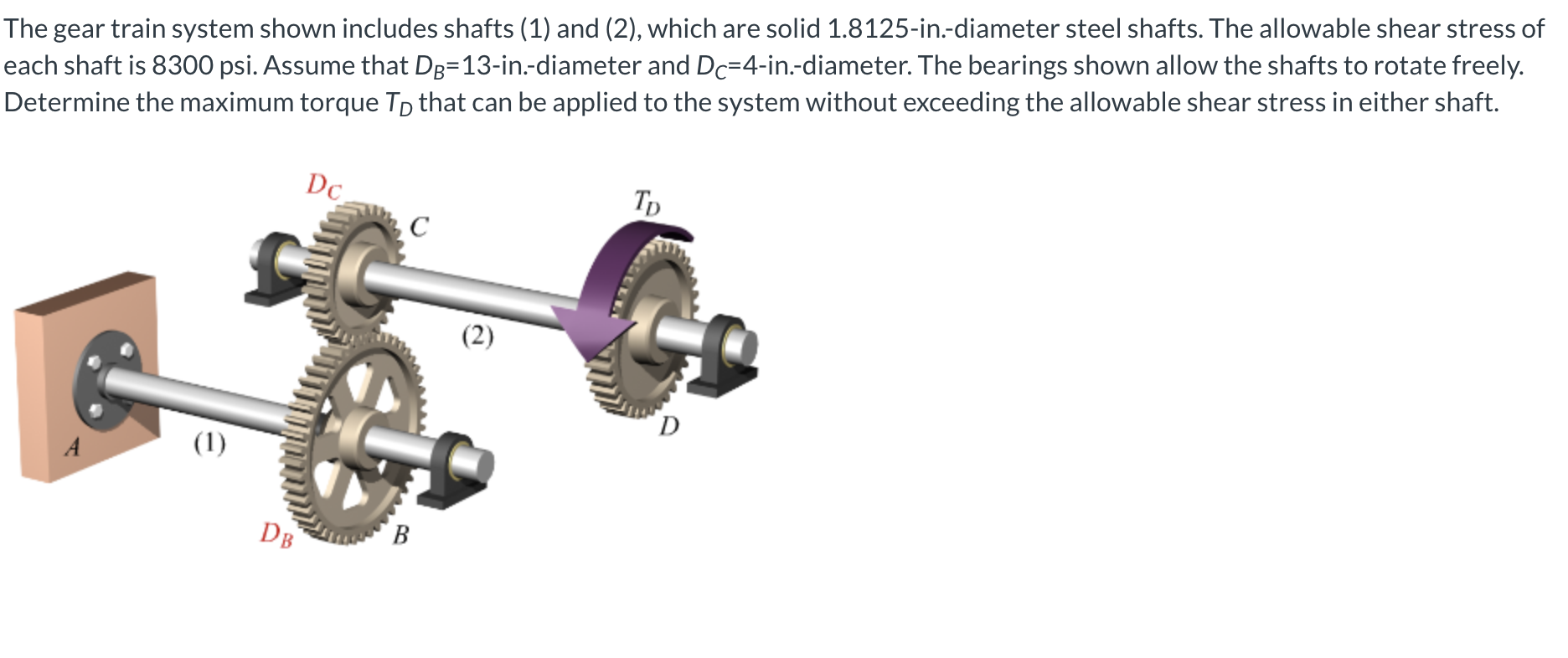

The gear train system shown includes shafts (1) and (2), which are solid 1.8125-in.-diameter steel shafts. The allowable shear stress of each shaft is 8300 psi. Assume that \( D_{B}=13\)-in.-diameter and \( D_{C}=4\)-in.-diameter. The bearings shown allow the shafts to rotate freely. Determine the maximum torque \( T_{D}\) that can be applied to the system without exceeding the allowable shear stress in either shaft.
The gear train system shown includes shafts ( 1 )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
