The goal of this assignment is to practice developing GUI using JavaFX.

First, you need to install Scene Developer. After installing Scene Developer, open your fxml file using Scene Developer, and update the UI as requested.

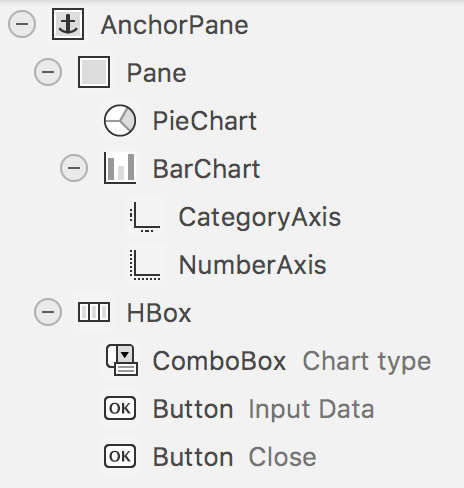

You will have 1 BarChart, 1 PieChart, 1 ComboBox and 2 buttons in your GUI:

When the GUI is initially launched, BarChart chart type will be displayed in the ComboBox and BarChart will be visible.

When the Input Data button is pressed, a dialog will be opened, and user will be able to input some text. If Cancel is pressed, the Input Your Text dialog will be closed and the screen wont be refreshed. However, if OK button is pressed, the the Input Your Textdialog will be closed and the active chart type will be refreshed.

It is sufficient to add the data to the chart, you are not required to change the colors, or manipulate any other format. Also, the color for the buttons in the figures is completely optional, you do not need to update the color of the buttons in the GUI.

You are going to implement changed function of the ComboBox, and according to the selection, the selected chart will be refreshed.

At the end of this assignment, you will be able to practice:

How to design a GUI using Scene Developer

How to attach events/listeners to components in the Controller Class

How to name the components in the Scene Developer, and use them in the Controller class

How to bind event function implementations to the components using Scene Builder.

Where to download scene builder:

http://gluonhq.com/products/scene-builder/

Framework for FXMLDocumentController.java:

import java.net.URL; import java.util.Arrays; import java.util.Optional; import java.util.ResourceBundle; import javafx.application.Platform; import javafx.beans.value.ChangeListener; import javafx.beans.value.ObservableValue; import javafx.event.ActionEvent; import javafx.fxml.FXML; import javafx.fxml.Initializable; import javafx.scene.chart.BarChart; import javafx.scene.chart.PieChart; import javafx.scene.chart.XYChart; import javafx.scene.chart.XYChart.Series; import javafx.scene.control.Button; import javafx.scene.control.ButtonBar.ButtonData; import javafx.scene.control.ButtonType; import javafx.scene.control.ComboBox; import javafx.scene.control.Dialog; import javafx.scene.control.TextField; import javafx.scene.layout.GridPane; import javafx.stage.Stage;

enum ChartType{barChart, pieChart};

public class FXMLDocumentController implements Initializable { final int TOTAL_CHARS = 26; ChartType mChartType; int mChars[]; @FXML private void didClickCloseButton(ActionEvent event){ Stage stage = (Stage) mButtonClose.getScene().getWindow(); stage.close(); } private String showInputDialog(){ Dialog dialog = new Dialog(); dialog.setTitle("Input your text");

ButtonType okButton = new ButtonType("OK", ButtonData.OK_DONE); dialog.getDialogPane().getButtonTypes().addAll(okButton, ButtonType.CANCEL);

GridPane gridPane = new GridPane(); gridPane.setHgap(10); gridPane.setVgap(10);

TextField inputText = new TextField(); inputText.setPromptText("Input Text");

gridPane.add(inputText, 0, 0);

dialog.getDialogPane().setContent(gridPane);

Platform.runLater(()->inputText.requestFocus());

dialog.setResultConverter((ButtonType dialogButton) -> { if (dialogButton == okButton) { return (inputText.getText()); } return (null); });

Optional result = dialog.showAndWait();

if (result.isPresent()){ return (result.get()); }

return (null); } private void paint(){ // Please implement this function // This function according to the mChartType // refreshes either BarChart or PieChart // You need to add each item and its occurance (for instance 'a', 2) // to the selected chart for each character in the alpabet } @FXML private void didClickInputButton(ActionEvent event) { Arrays.fill(mChars, 0); String s = showInputDialog(); if ((s!= null) && (s.trim().length() > 0)){ s = s.toLowerCase(); for (int i=0;i Character ch = s.charAt(i); if (Character.isAlphabetic(ch)){ int index = ch - 'a'; mChars[index]++; } } } paint(); } @Override public void initialize(URL url, ResourceBundle rb) { // Please implement this function // 1. initialize your mChars array // 2. make mPieChart hidden // 3. set mChartType to barChart // 4. add "BarChart" and "PieChart" to the comboBox // 5. set selected item "BarChart" in the combobox // 6. add ChangeListener to ComboBox, and implement changed event // 7. In the changed event update the mChartType according to newValue and // 8. update the visibility of the charts accordingly // 9. call the paint } }

Character Histogram 110 100 90 80 70 60 50 40 30 20 10 Input your text aabbc Cancel OK Char BarChart Input Data Close Character Histogram 110 100 90 80 70 60 50 40 30 20 10 Input your text aabbc Cancel OK Char BarChart Input Data Close
