Question: The graph presents an arrow network without event numbers but showing the duration for each activity in days. (1) Number the events; (2) Calculate the

The graph presents an arrow network without event

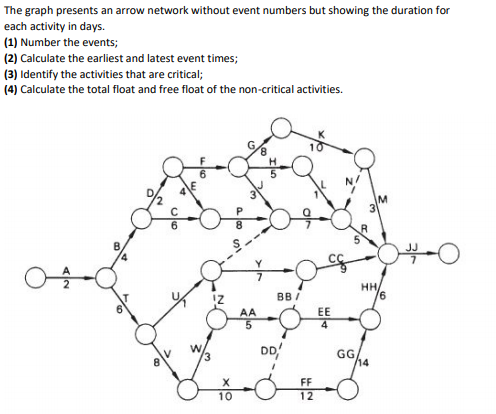

The graph presents an arrow network without event numbers but showing the duration for each activity in days. (1) Number the events; (2) Calculate the earliest and latest event times; (3) Identify the activities that are critical; (4) Calculate the total float and free float of the non-critical activities. M >N HH 6 N / 5 EE 4 w 3 DD GG 114 FF 10 12
