Question: The light right - angle boom which supports the 3 5 0 - kg cylinder is supported by three cables and a ball - and

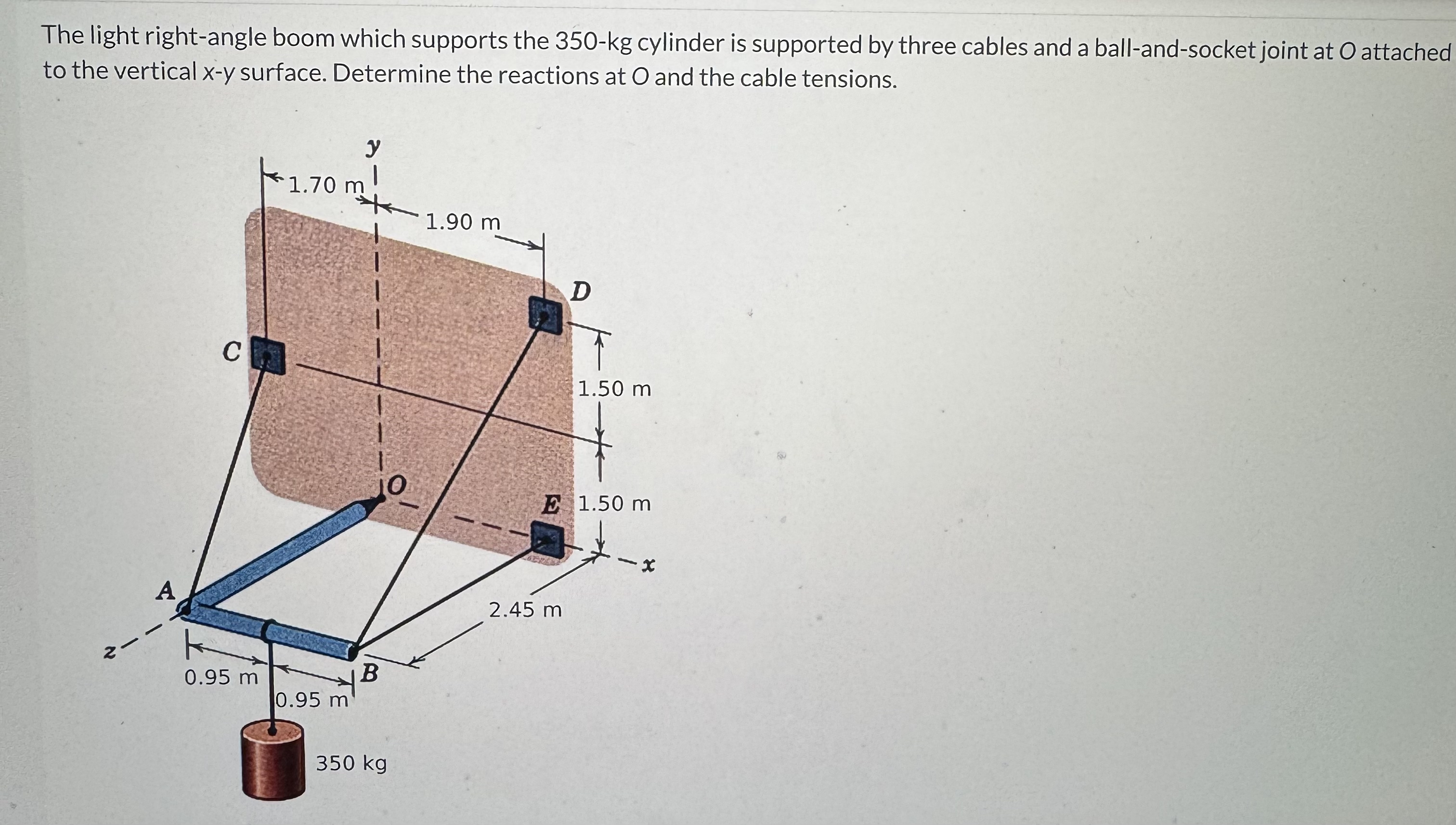

The light right-angle boom which supports the 350-kg cylinder is supported by three cables and a ball-and-socket joint at O attached
to the vertical x-y surface. Determine the reactions at O and the cable tensions.
