Question: The light right - angle boom which supports the 4 0 0 kg cylinder is supported by three cablesand a ball - land - socket

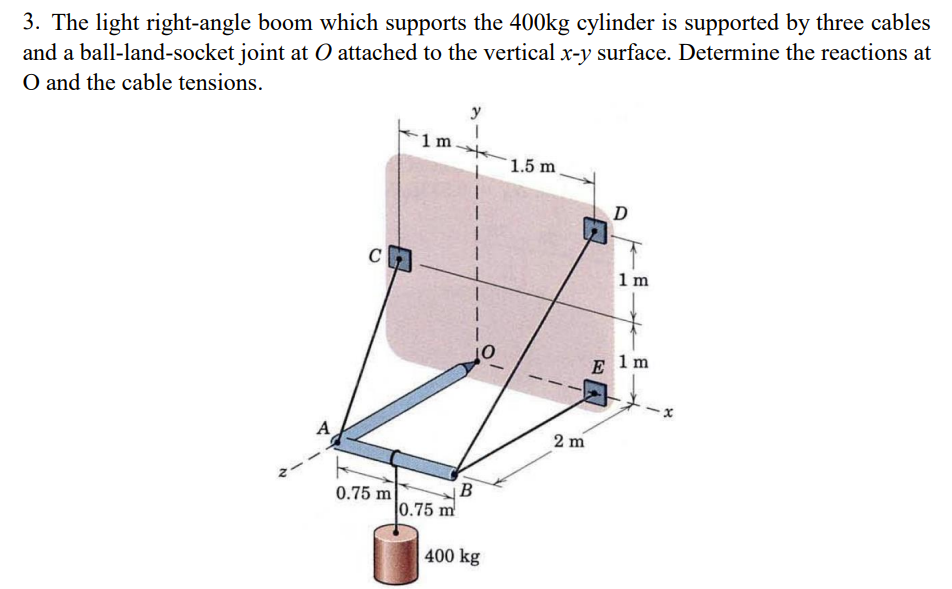

The light right-angle boom which supports the 400kg cylinder is supported by three cablesand a ball-land-socket joint at O attached to the vertical x-y surface. Determine the reactions atO and the cable tensions.The light right-angle boom which supports the 400kg cylinder is supported by three cablesand a ball-land-socket joint at O attached to the vertical x-y surface. Determine the reactions atO and the cable tensions.
The light right-angle boom which supports the 400kg cylinder is supported

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
