Question: The liquid-level process shown in Fig. P5-9 is operating at steady state when the following disturbance occurs: At time t = 0,1 ft3 water is

The liquid-level process shown in Fig. P5-9 is operating at steady

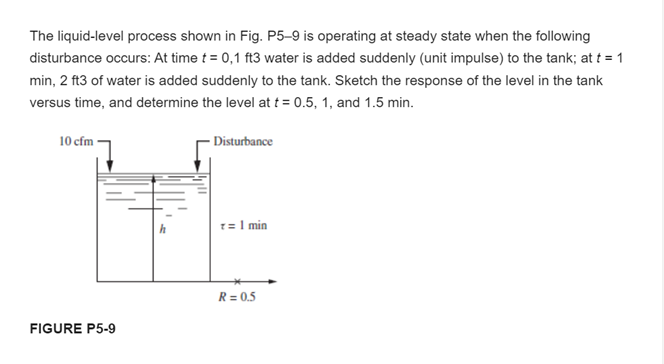

The liquid-level process shown in Fig. P5-9 is operating at steady state when the following disturbance occurs: At time t = 0,1 ft3 water is added suddenly (unit impulse) to the tank; at t = 1 min, 2 ft3 of water is added suddenly to the tank. Sketch the response of the level in the tank versus time, and determine the level at t= 0.5, 1, and 1.5 min. 10 cfm Disturbance r = 1 min R=0.5 FIGURE P5-9

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

??? The liquid-level process shown in Fig. P5-9 is operating at steady state when the following disturbance occurs: At time t=0,1ft3 water is added suddenly (unit impulse) to the tank; at t=1 min,...
