Question: The load shown in Fig. 1 ( c ) comprises a parallel combination of a resistor RL and a capacitor CL . Calculate the amplitude

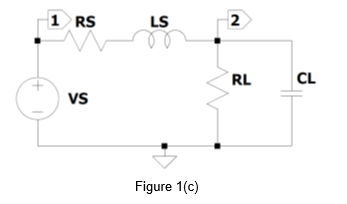

The load shown in Fig. 1(c) comprises a parallel combination of a resistor RL and a capacitor CL. Calculate the amplitude and phase of the voltage at node 2 when:
VS = sin (4 x 105t) V, RS =(1000+ ), LS =(1000+) nH, RL =10 k,
CL =(1000+ ) pF. Figure 1(c)
