Question: The man attempts to pull down the tree using the cable and small pulley arrangement shown. If the tension in ( A B

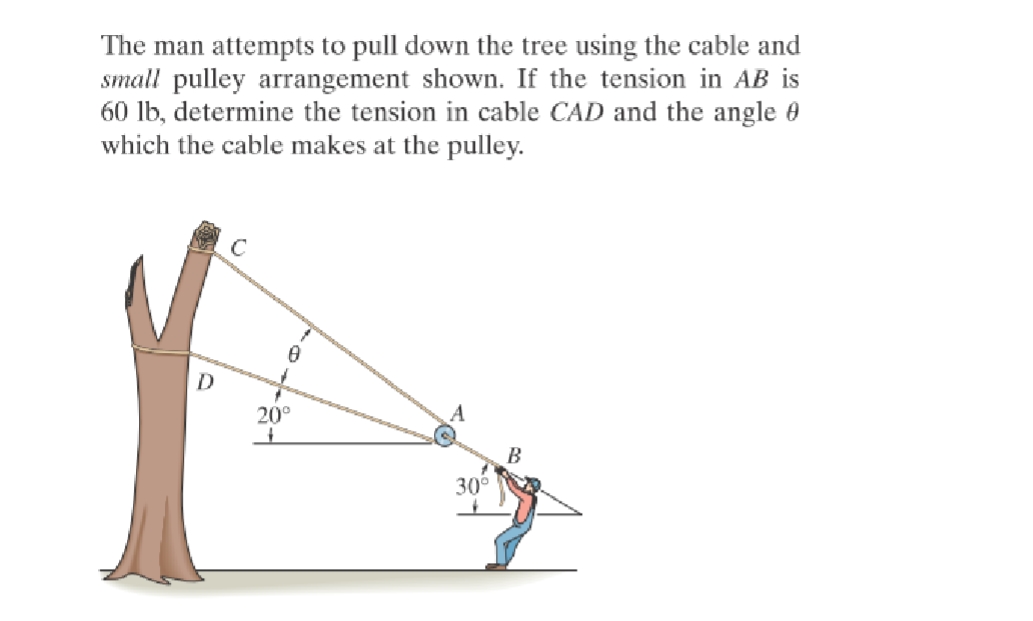

The man attempts to pull down the tree using the cable and small pulley arrangement shown. If the tension in \( A B \) is 60 lb , determine the tension in cable \( C A D \) and the angle \(\theta \) which the cable makes at the pulley.
The man attempts to pull down the tree using the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Homework 02 3-7. The man attempts to pull down the tree using the cable and small pulley arrangement shown. If the tension in AB is 60 lb, determine the tension in cable CAD and the angle which the...

Q:

The man attempts to pull down the tree using the cable and small pulley arrangement shown. If the tension in AB is 60 lb, determine the tension in cable CAD and the angle which the cable makes at...

Q:

The man attempts to pull down the tree using the cable and small pulley arrangement shown. If the tension in AB is 60 lb determine the tension in cable CAD and the angle that the cable makes at the...
