Question: The output light will turn on when the Start PB is a NO Pushbutton A) As soon as the start pb is pressed B) 1

The output light will turn on when the Start PB is a NO Pushbutton A) As soon as the start pb is pressed B) 1 second after the Start PB is pressed C) As soon as the Start PB is released D) 1 second after the Start PB is released E) Not at all

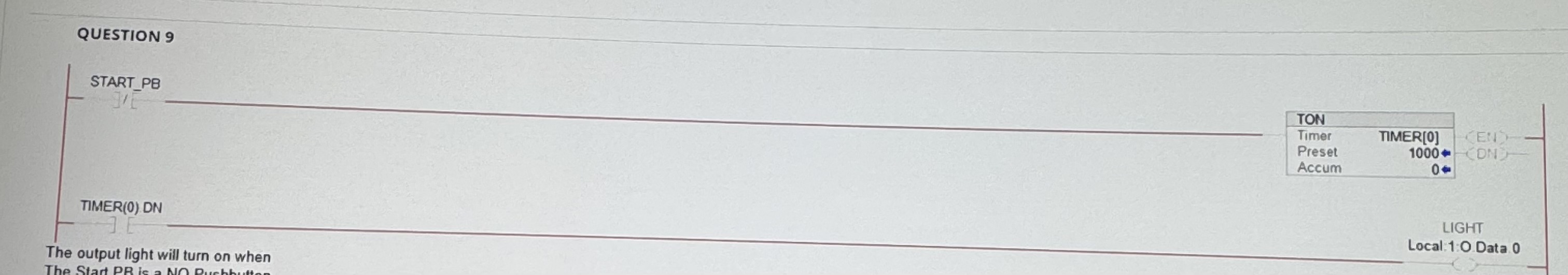

QUESTION 9 START_PB TON Timer TIMER[0] CEN Preset 1000 ON Accum TIMER(0) DN LIGHT Local: 1:0. Data. 0 The output light will turn on when
