Question: The overall transfer function of a process is given by G=G1G2 where G1=1s+1K1 and G2=2s+1K21=5,2=3 (a) What is the overall gain of G ? (b)

The overall transfer function of a process is given by G=G1G2

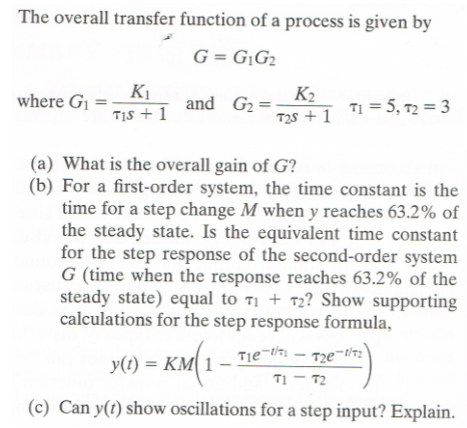

The overall transfer function of a process is given by G=G1G2 where G1=1s+1K1 and G2=2s+1K21=5,2=3 (a) What is the overall gain of G ? (b) For a first-order system, the time constant is the time for a step change M when y reaches 63.2% of the steady state. Is the equivalent time constant for the step response of the second-order system G (time when the response reaches 63.2% of the steady state) equal to 1+2 ? Show supporting calculations for the step response formula, y(t)=KM(1121et/12et/2) (c) Can y(t) show oscillations for a step input? Explain

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

5.6 The overall transfer function of a process is given by G=G1G2 where G1=1s+1K1 and G2=2s+1K21=5,2=3 (a) What is the overall gain of G ? (b) For a first-order system, the time constant is the time...

The overall transfer function of a process is given by (a) What is the overall gain of 0?(b) For a first-order system, the time constant is the time for a step change M when y reaches 63.2% of the...
